Insert Plate IP2.0-MINI predrilled for small routers
Prices are hidden for your customer group
Product information "Insert Plate IP2.0-MINI predrilled for small routers"

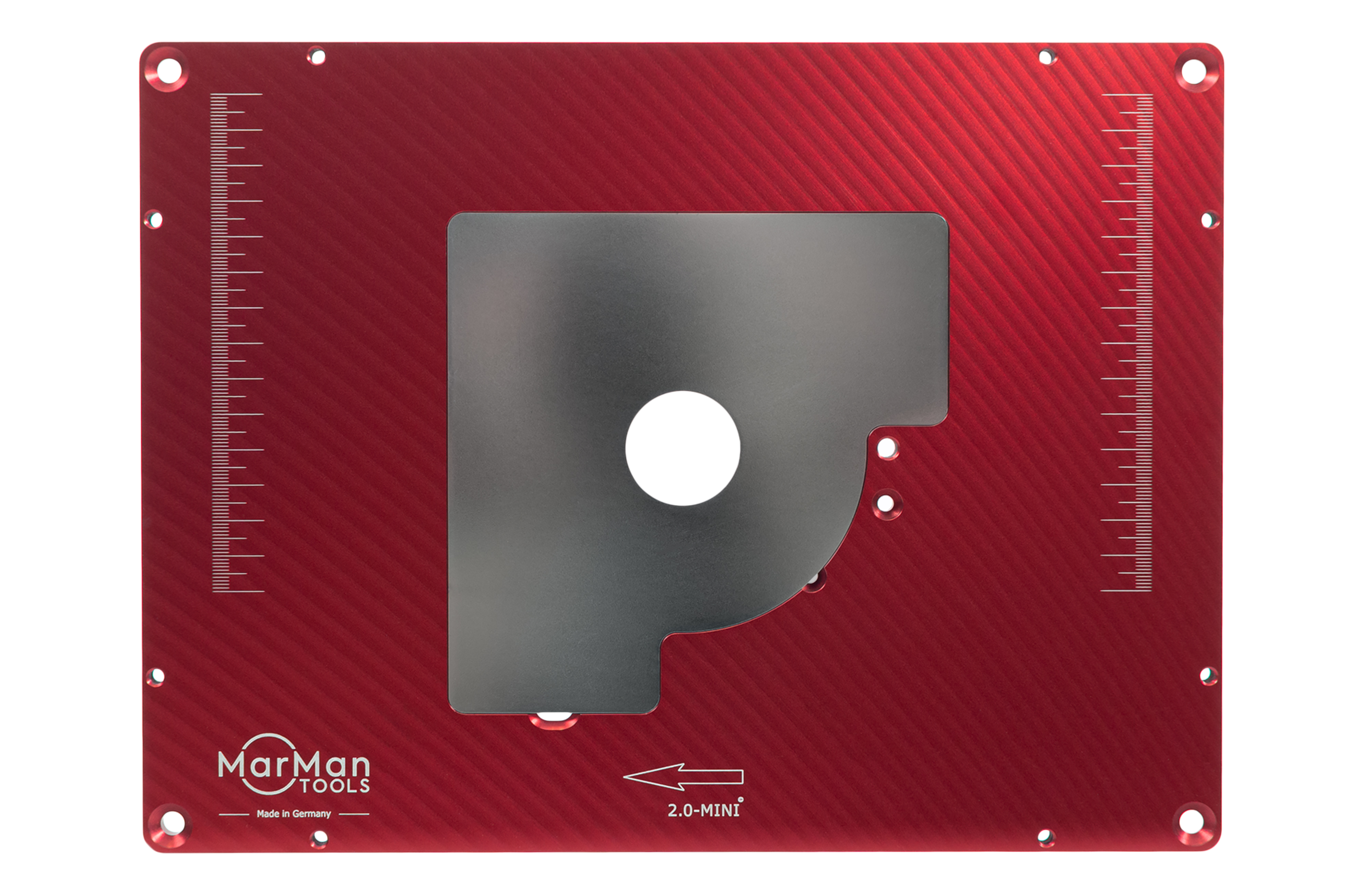

Premium insert plate IP2.0-MINI with steel reduction plates 32 & 68 mm
Product details:

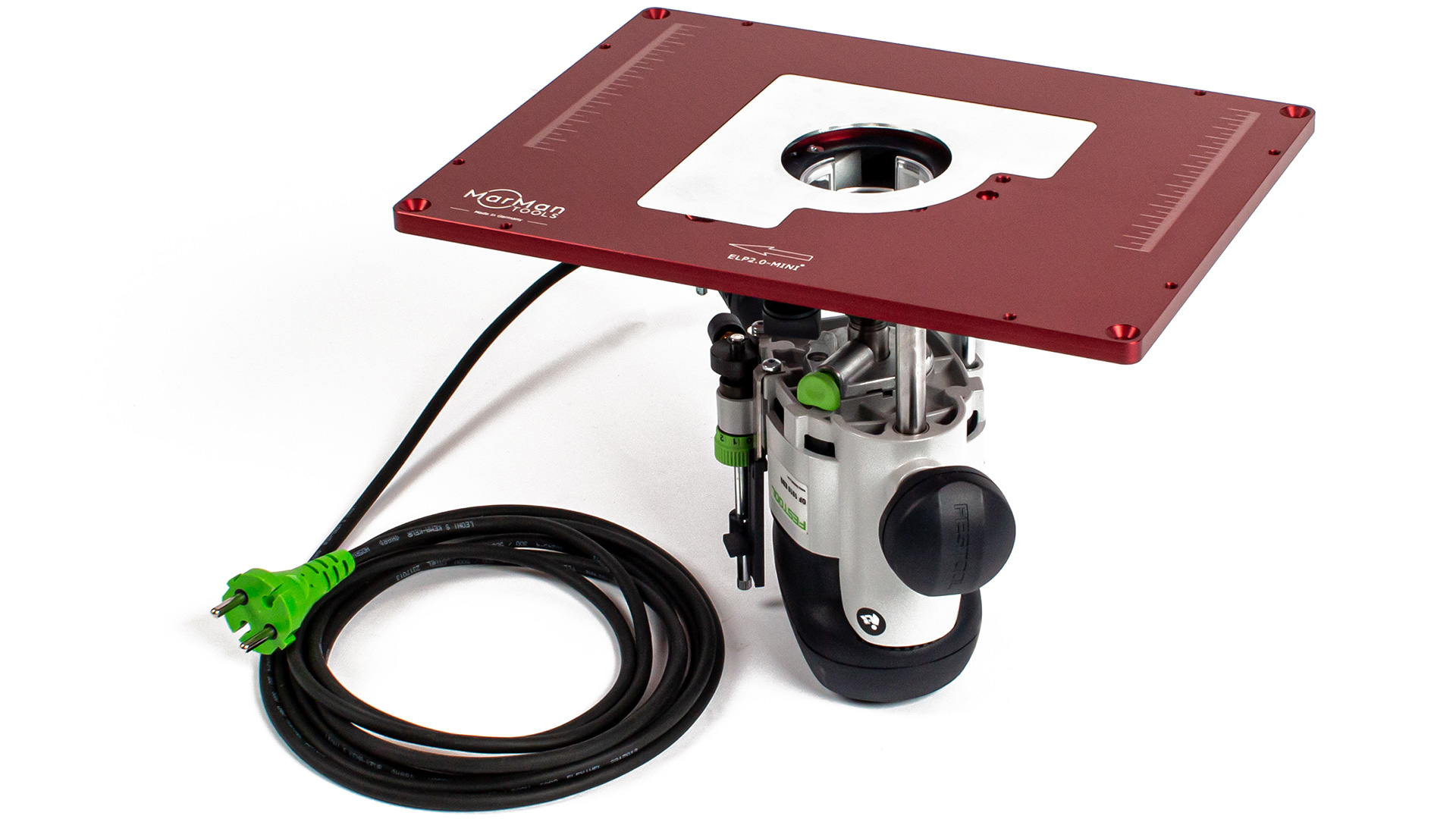

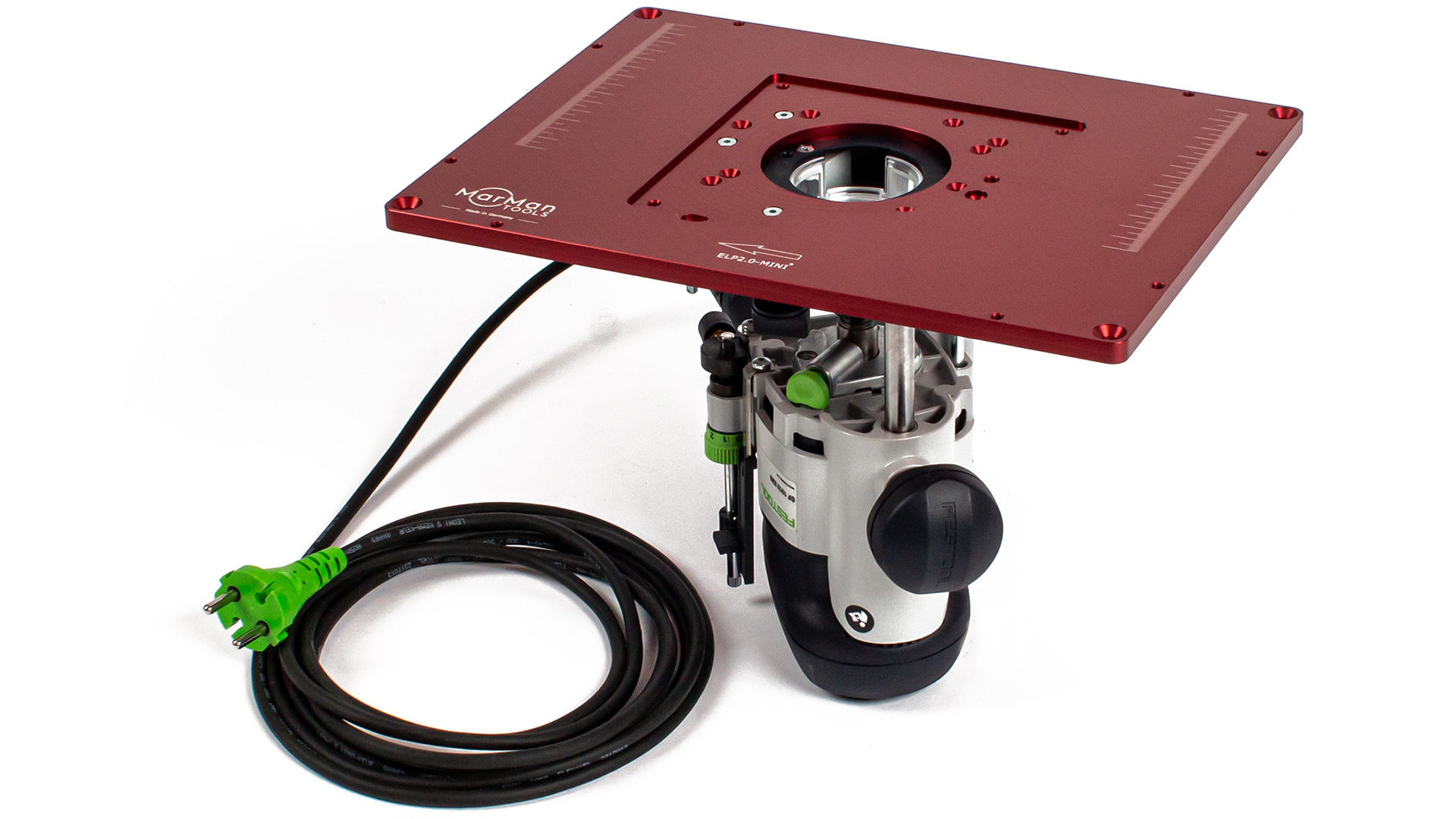

- Pilot holes fit Festool OF1010, Festool OF1000, Festool OF900E, Makita RT0700 and DeWalt 26203
- Quality "Made in Germany": high-quality and robust
- Solid aluminium with 9 mm thickness
- Including 2 reduction plates made of galvanized, 2 mm thick steel
- Includes hole for free routing pin RTS-KIT (to be purchased separately) for working with curved workpieces
- Laser scaling: millimeter scale on the surface for exact alignment of the rip fence
- Absolutely flat: easy leveling of the IP2.0-MINI by means of leveling screws in the insert plate
* The threaded holes drilled in the base plate of each router must always be at least 115 mm apart in order to avoid getting into the area of the insert rings when fixing the router to the insert plate.
Technical data:
- Dimensions: 306 x 229 x 9 mm
- Ø cutter openings: 32 and 68 mm (further diameters up to 98 mm separately expandable)
Scope of delivery:
- insert plate IP2.0-MINI
- 2x reduction plates (32 mm and 68 mm)
- mounting screws
- leveling screws
- mounting instructions
