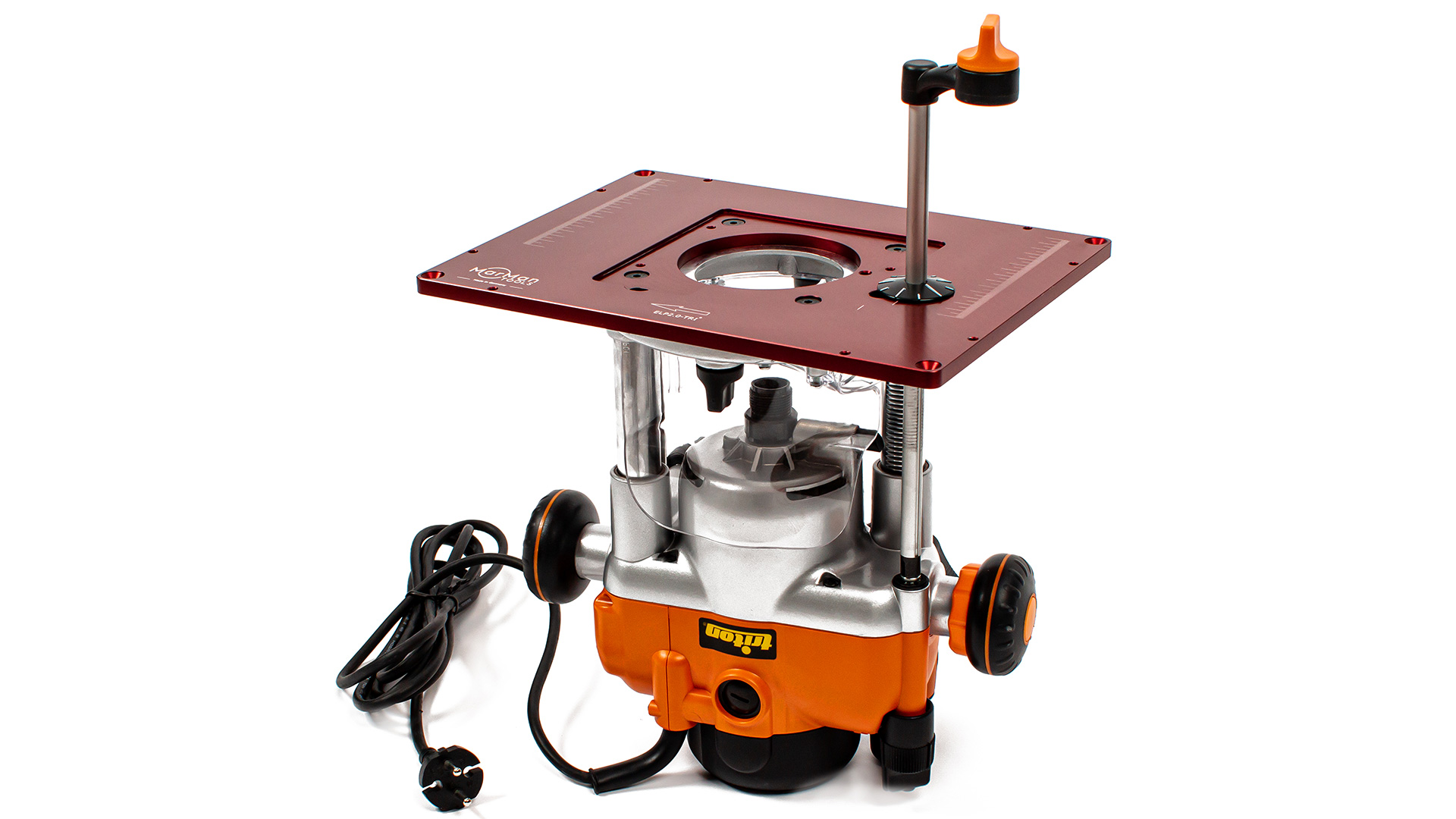

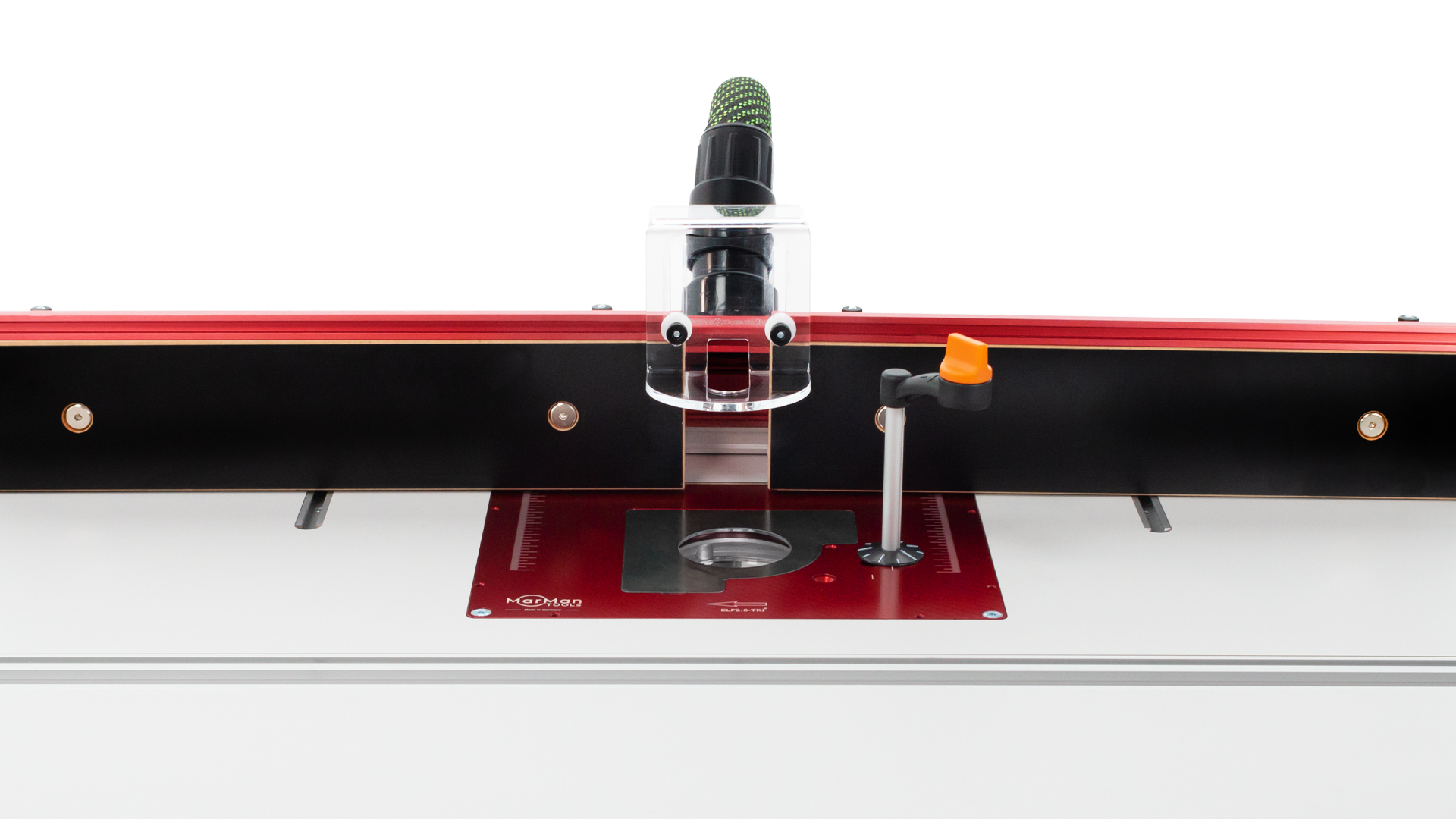

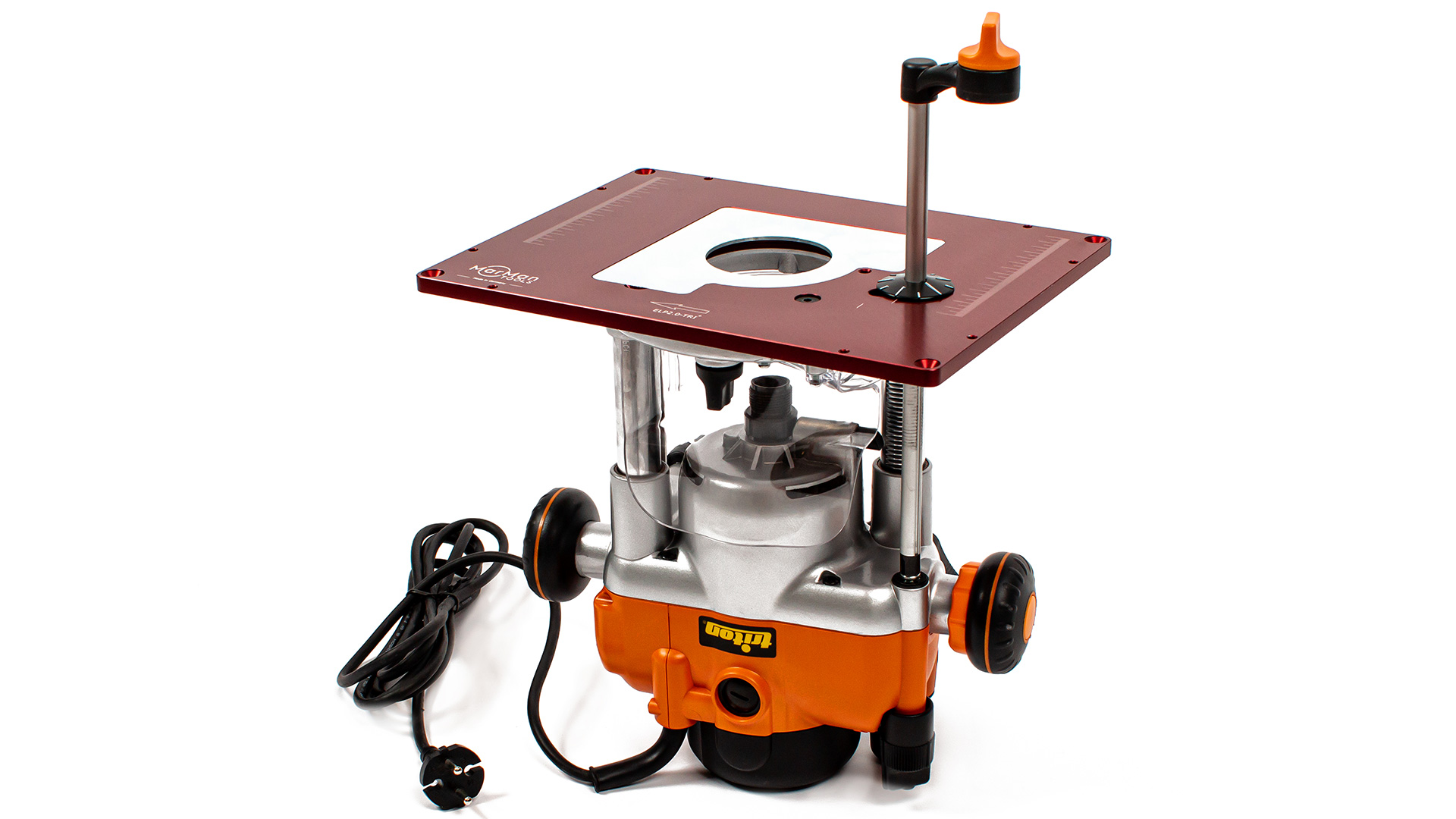

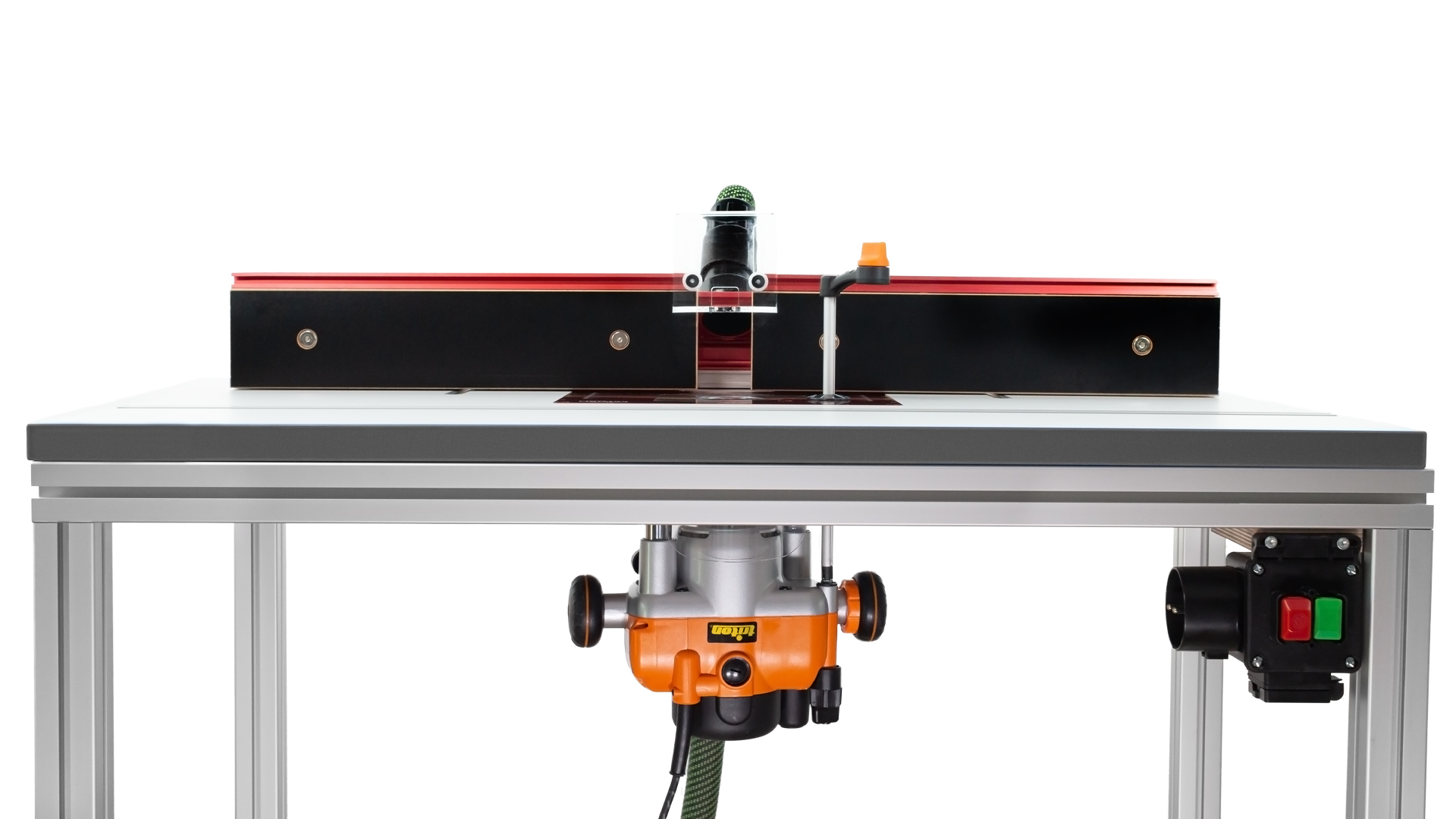

Insert Plate IP2.0-TRI predrilled for Triton routers

Prices are hidden for your customer group
Order number: IP2.0-TRI
Product information "Insert Plate IP2.0-TRI predrilled for Triton routers"

Premium insert plate with magnetic steel reduction plates 32 & 68 mm

Product features:

  • Pilot holes fit for Triton TRA001 and Triton MOF001
  • Quality Made in Germany: high-quality and robust
  • Solid aluminium with 9 mm thickness
  • Including 2 reduction plates made of galvanized, 2 mm thick steel
  • Mounting holes available for mounting on the router table
  • Inlet for reducing plates slightly chamfered for a perfect transition
  • Includes hole for free router pin (to be purchased separately) for working with curved workpieces
  • Scale for exact positioning of the rip fence
  • Levelling screws for exact adjustment in the router  table included

* The threaded holes drilled in the base plate of each router must always be at least 115 mm apart in order to avoid getting into the area of the insert rings when fixing the router to the insert plate.

Technical data:

  • Dimensions: 306 x 229 x 9 mm
  • Ø Cutter openings: 32 and 68 mm (further diameters up to 98 mm separately expandable)

Delivery Includes:

  • Insert plate IP2.0-TRI
  • 2x reduction plates (32 mm and 68 mm)
  • Mounting screws
  • Levelling screws
  • Assembly instructions
