Pivoting Router Lift RL3.0 for Router Motor
Prices are hidden for your customer group
Product information "Pivoting Router Lift RL3.0 for Router Motor"

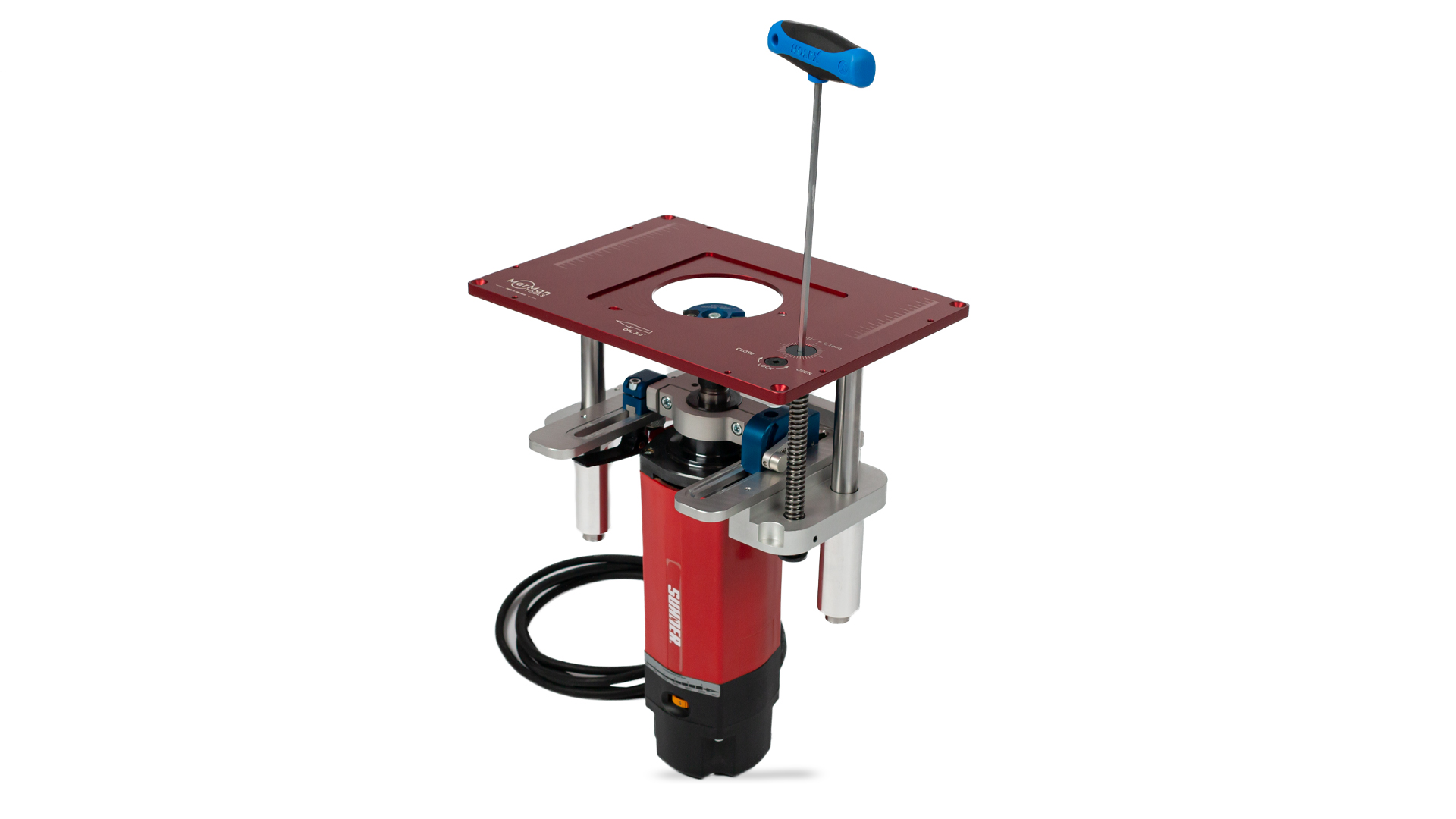

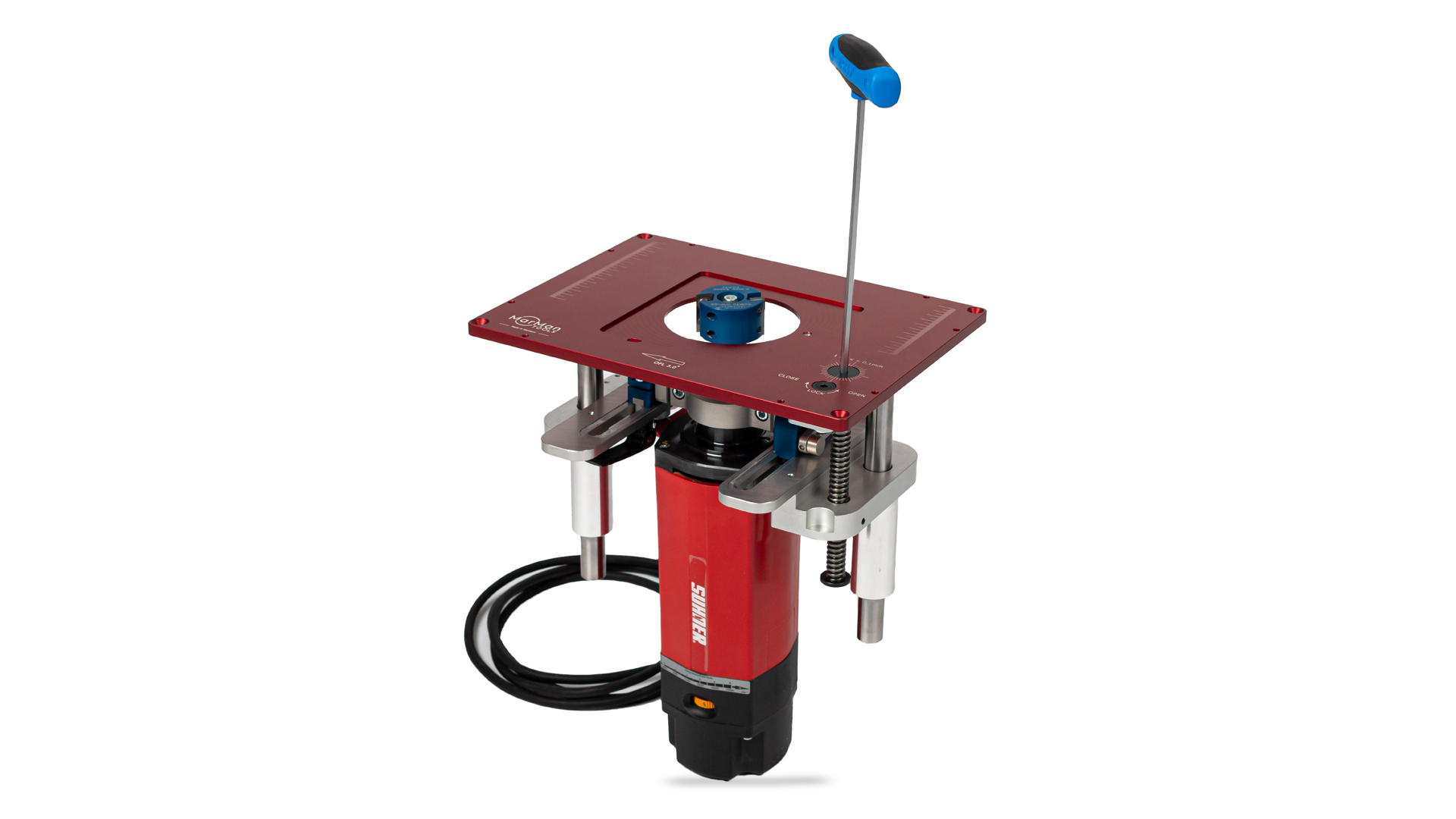

Router lift RL3.0 with steel reduction plates 16, 32 & 68mm

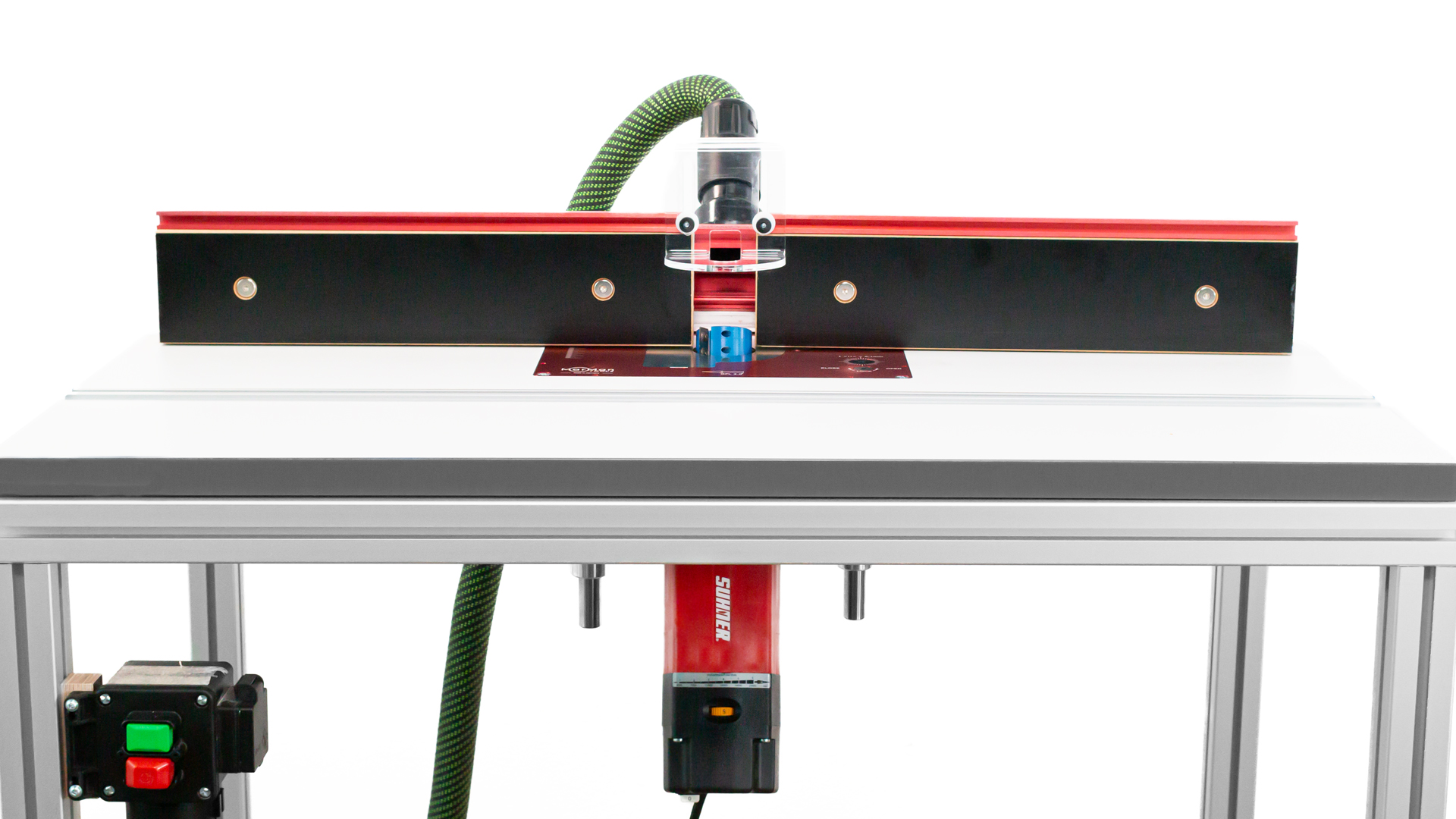

Experience the revolutionary RL3.0 pivoting router lift – the first and only of its kind with a precise swivel range from -5 to 50 degrees, perfect for routers with a 43mm collet. This robust and expertly crafted masterpiece combines professional table router technology in a compact format, making it ideal for small workshops or as a versatile addition to your larger table router setup. Trust in genuine craftsmanship "Made in Germany" and benefit from its quick setup and configuration times!
Product details:

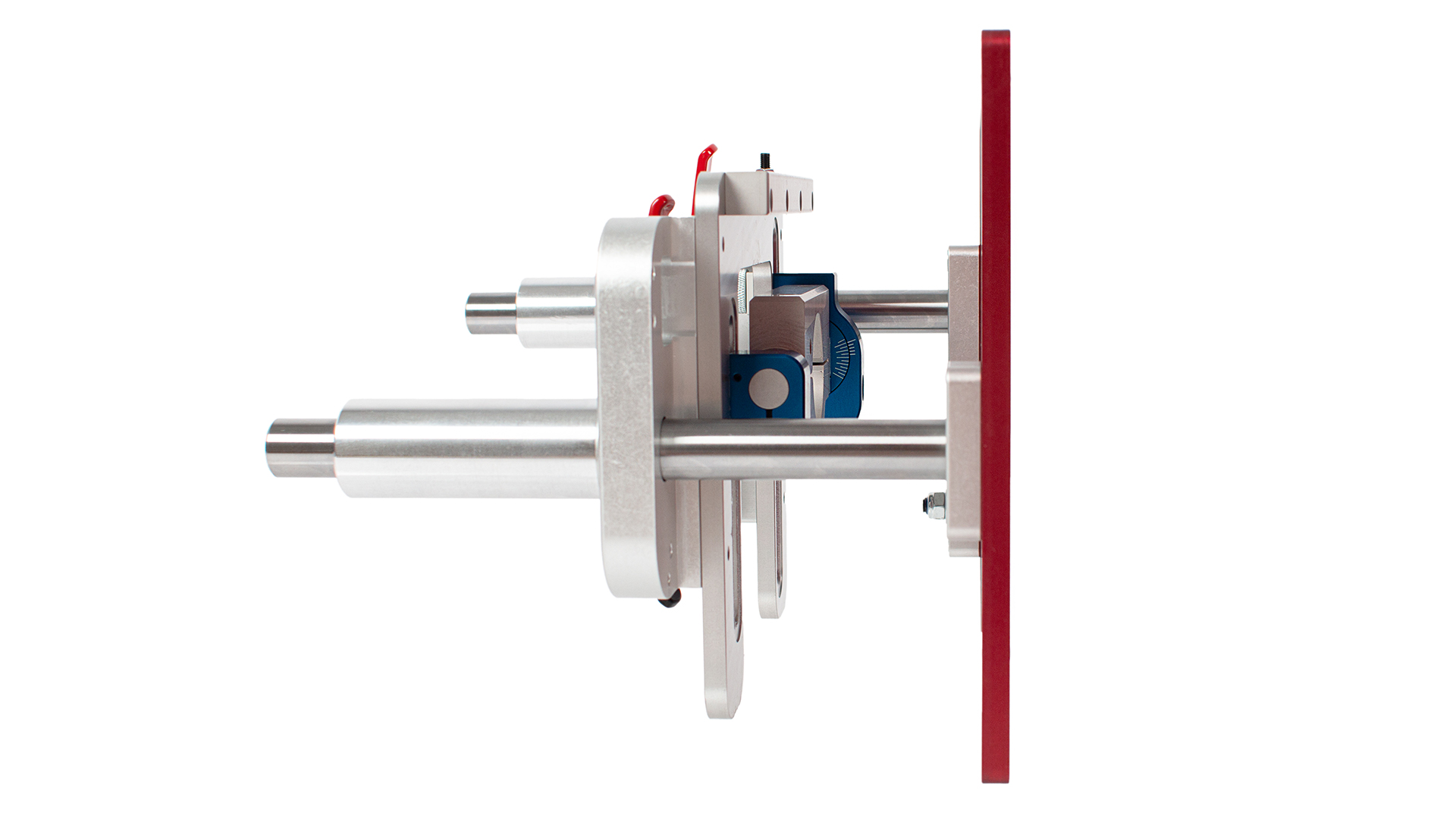

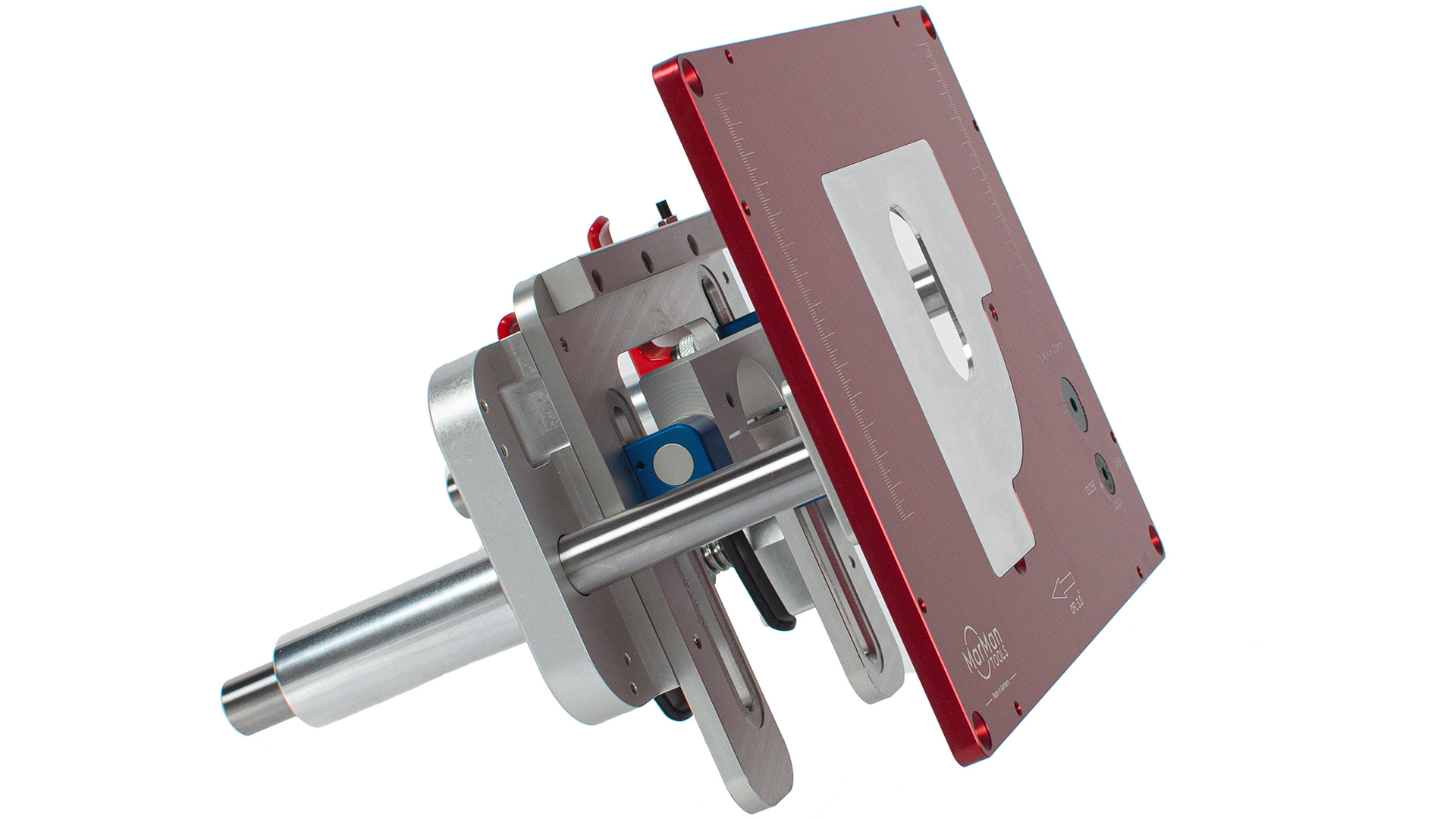

- Pivoting router lift from -5 degrees to 50 degrees - the first and only one of its kind!
- Quality "Made in Germany": construction made of high-quality aluminium and steel.
- For router motors with 43 mm clamping neck
- Classic snap-in guide points: 22.5°, 30°, 45° and 90°
- No loss of routing depth!
- Easy router bit changing, thanks to upward looking routing spindle and collet chuck

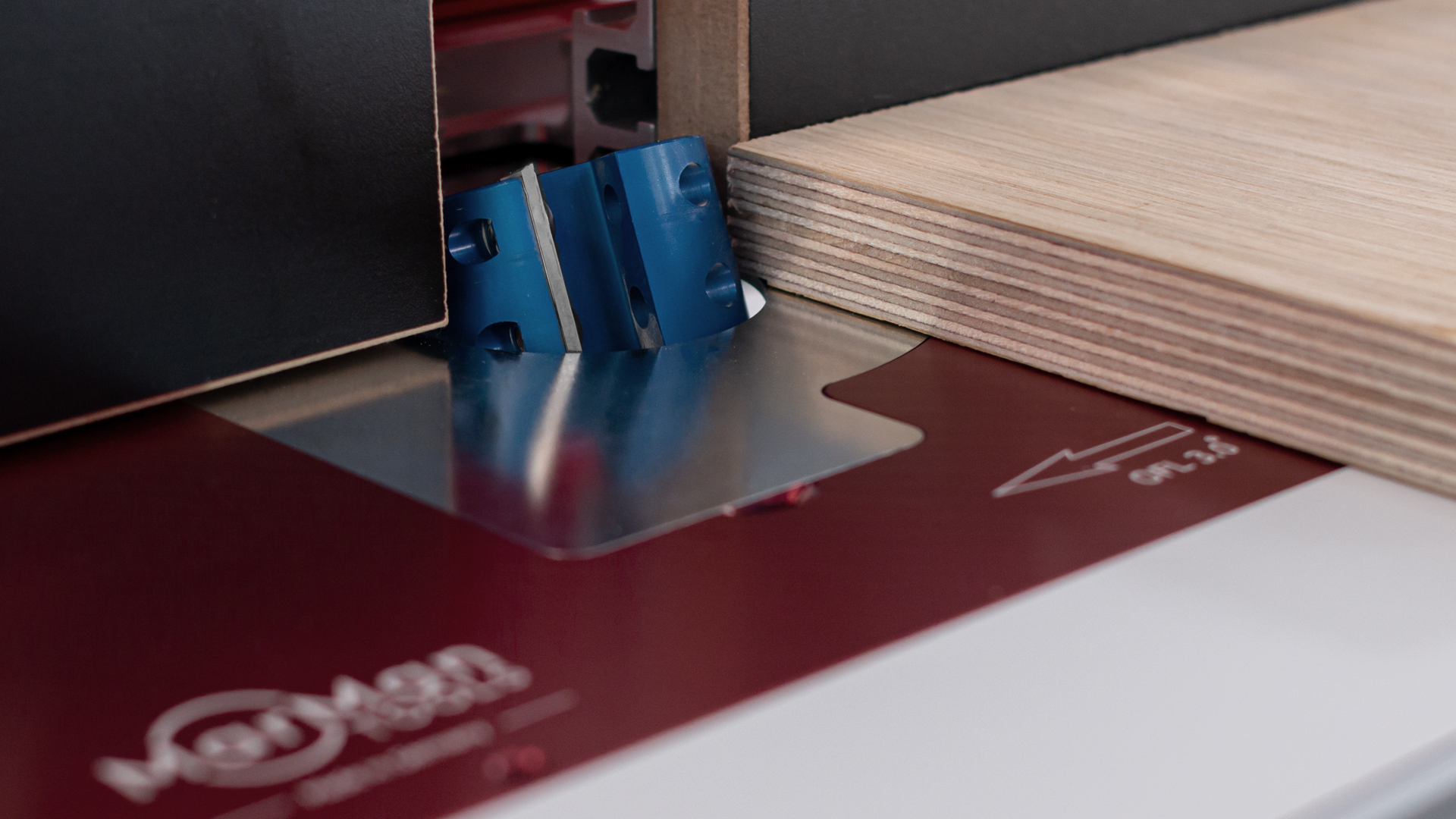

- Countless routing possibilities: grooves, rebates, chamfers, mitre cuts, and much more - and all this with only one slot routing cutter

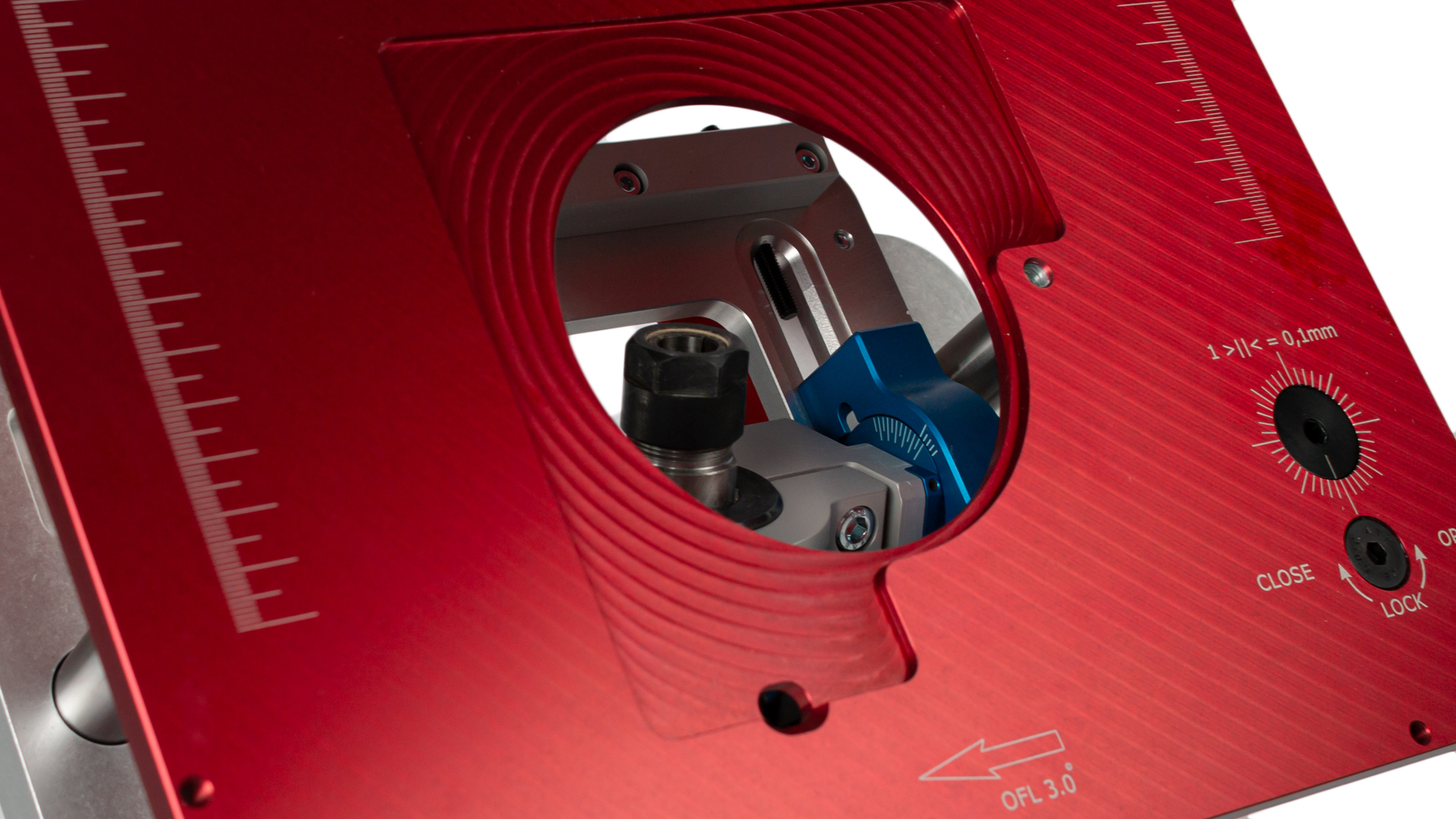

- Height fine adjustment to 1/10mm: extremely precise adjustment, with exact scaling and effective spindle lock, conveniently operated via hexagon socket screw.

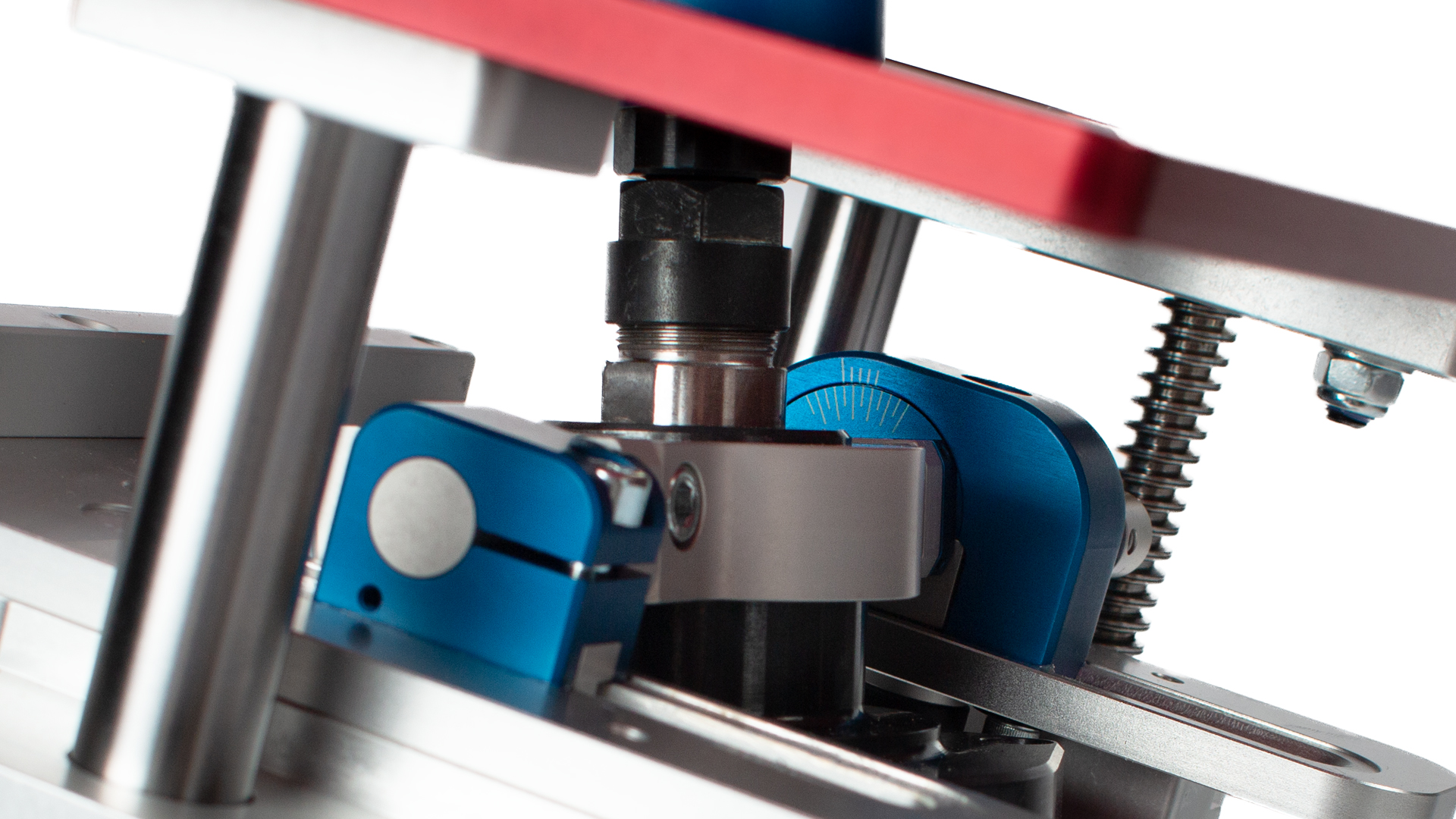

- Smooth-running spindle columns: allow continuous and exact fine height adjustment.
- Routing without rip fence: 2 drill holes for the rip fence pin enable free routing of e.g. round workpieces without rip fence.
- Absolutely flat: easy leveling of the RL3.0 using leveling screws in the insert plate.
- Laser scaling: millimetre scale on the surface for exact alignment of the rip fence.
Easy to use:
- Height adjustment via rotary handle above

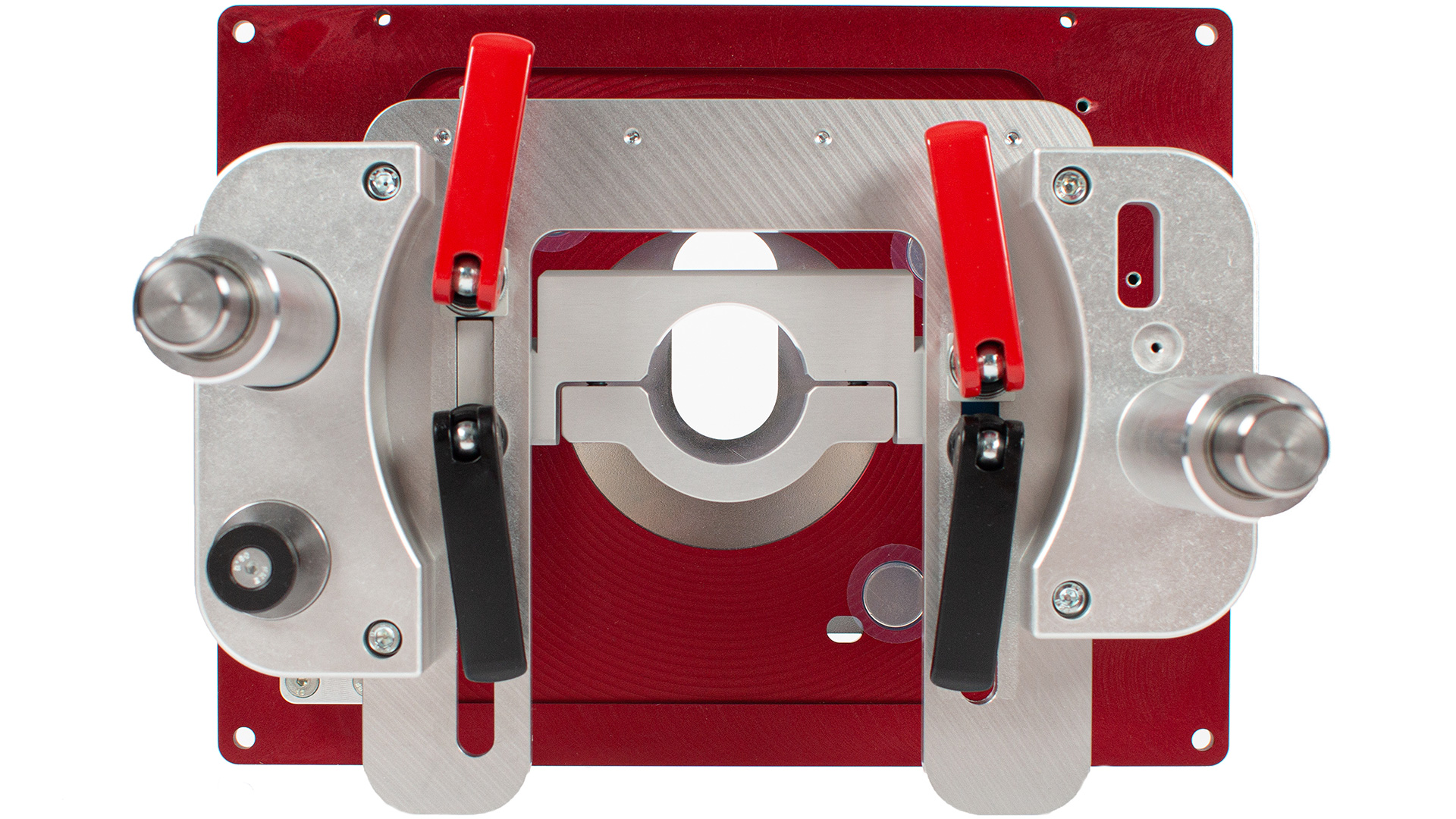

- Angle locking via a lever below
- Centering in the slotted hole by means of two levers below
- Additional recessed grip for easy changing of the reduction plates.
- Magnetism for attaching further accessories is distributed over the entire reduction plate.
- No own drillings necessary: mounting holes (countersunk head) for quick router table installation are already pre-drilled.
Compatible router motors:
- Kress: 530 FM, 800 FME, 1050 FME
- Mafell: FM 800, FM 1000
- Suhner: UAC 30 RF, UAD 25 RF, UAK 30 RF, UAL 23 RF
Note: Not compatible with Trend T4EK.
If your routing motor is not listed, please check the tolerances of the clamping neck specified by the manufacturer for your model or contact us.
Technical data:
- Dimension insert plate: 306 x 229 x 9 mm
- Corner radius of insert plate: 6 mm
- Height adjustment per rotation: 4 mm
- Max. adjustment travel: 101 mm
- Height router lift (max. extended): 240mm
- Max. Router bit diameter: 55 mm
- Weight: approx. 5 kg
Scope of delivery:
- 1x router lift RL3.0
- 2x reduction plates slot hole Ø 16 and 32mm
- 1x reduction plate round hole Ø 68mm
- 1x hexagon screwdriver 5x150mm
- 4x fixing screws M6x50, washers and nuts
- 8x leveling screws M5x8
- 1x instruction manual
