Router Lift ML-BR-K (KREG-format) for milling motors
Prices are hidden for your customer group
Product information "Router Lift ML-BR-K (KREG-format) for milling motors "

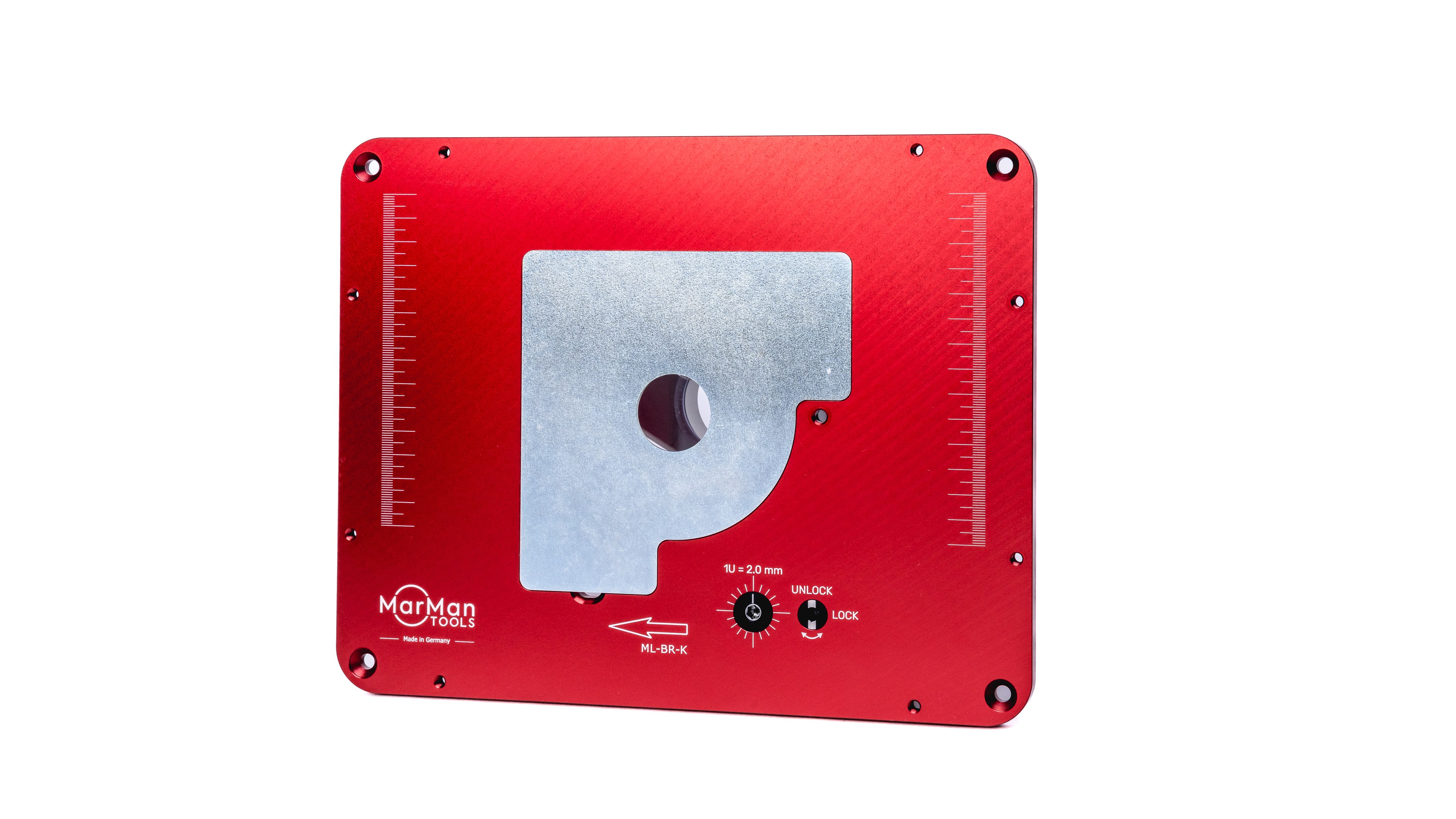

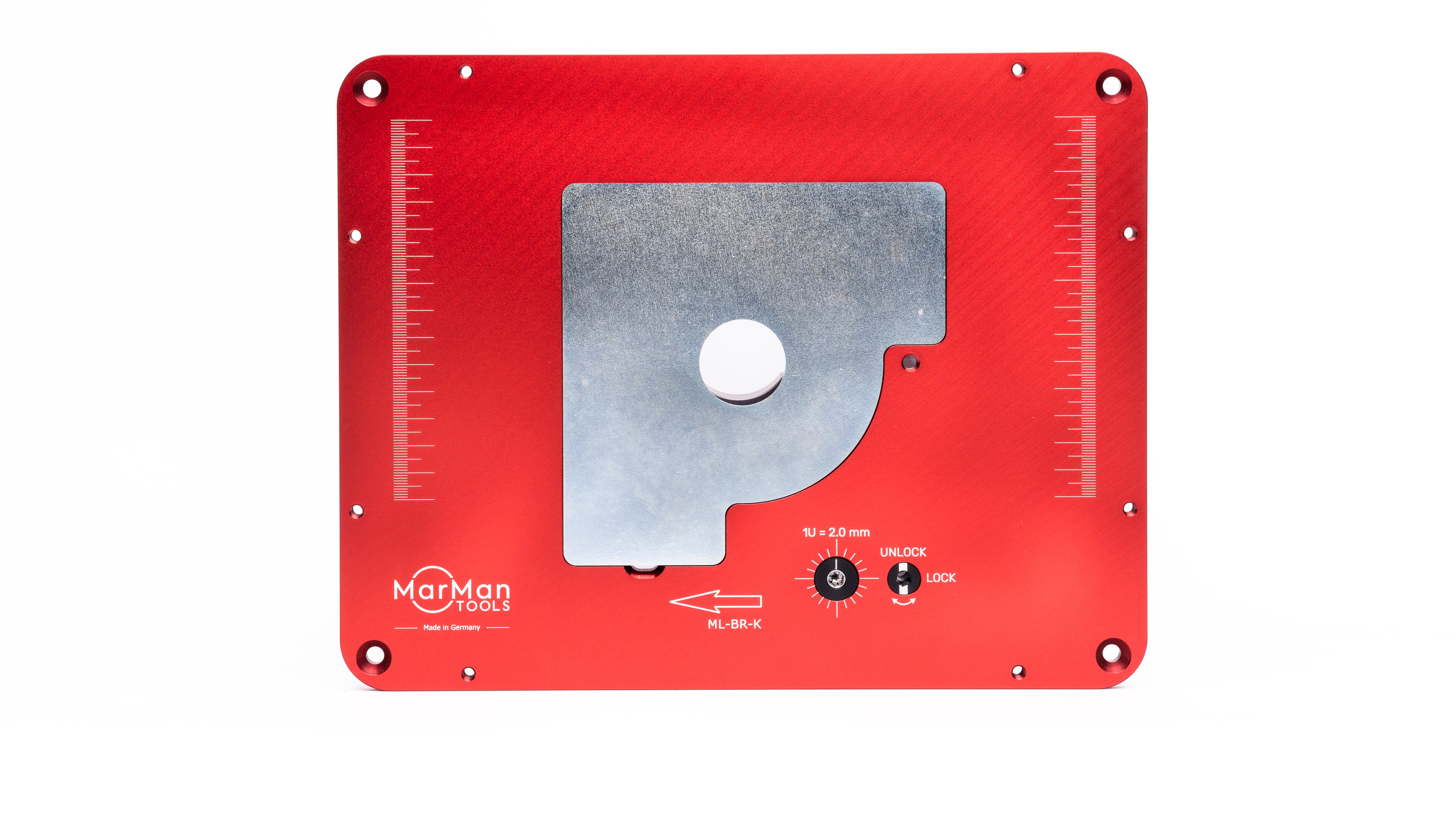

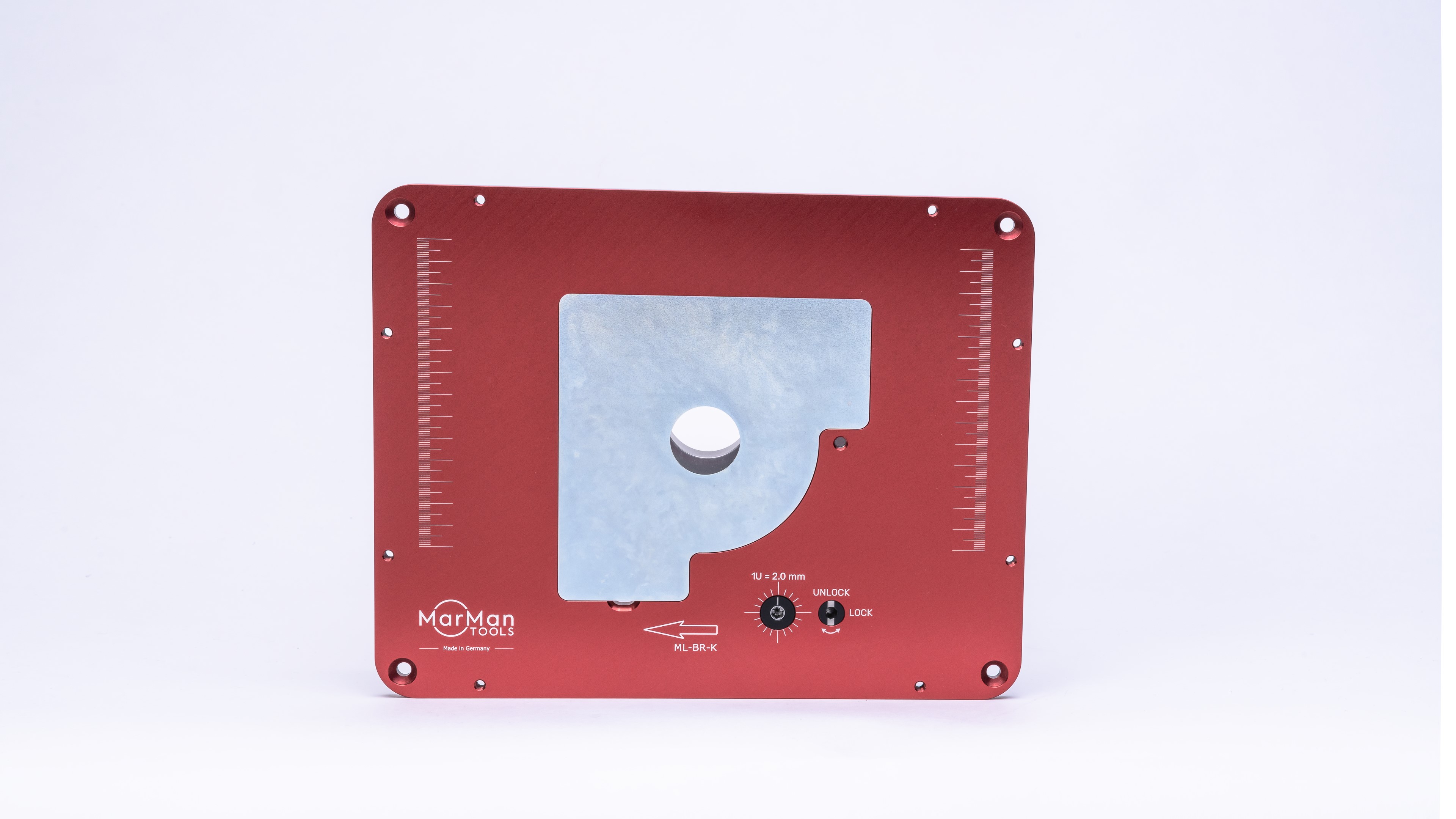

Router Lift ML-BR-K (KREG-format)
Especially for milling motors with a 43mm neck
The newly designed Router Lift for milling motors with Ø 43mm clamping neck is the successor of our popular RL2.0-AD43. With its new "bridge" design, it is perfectly tailored to the use of large and powerful router motors. The ML-BR is the only router lift with an integrated extraction connection that efficiently extracts wood chips and saw dust. Like all other MarMan Tools router lifts, the ML-BR is characterized by first-class and solid workmanship.
Advantages and features:

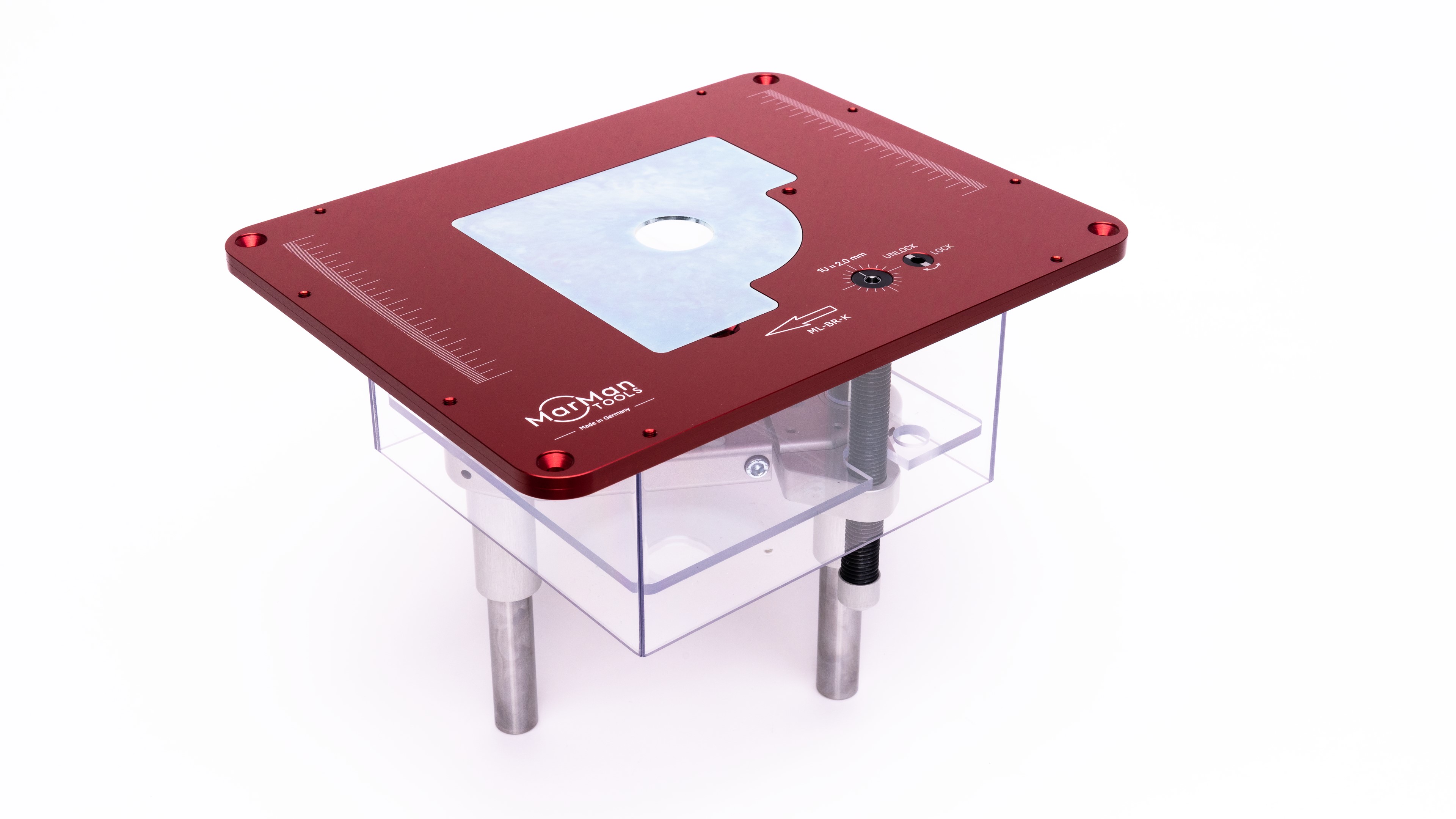

- New "Bridge" design for comfortable and reliable mounting of the router motor
- Suitable for all router motors with Ø 43mm clamping neck

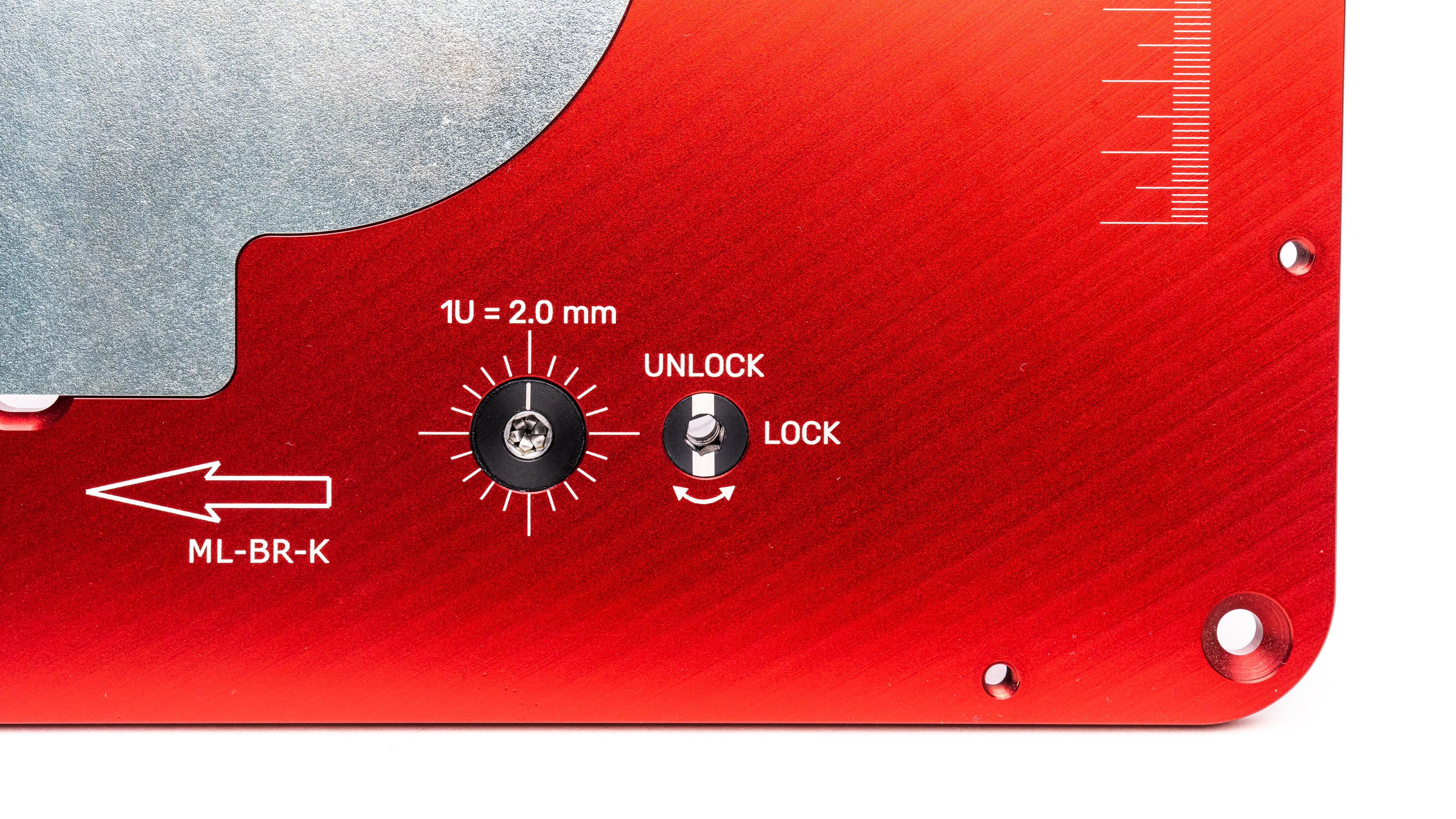

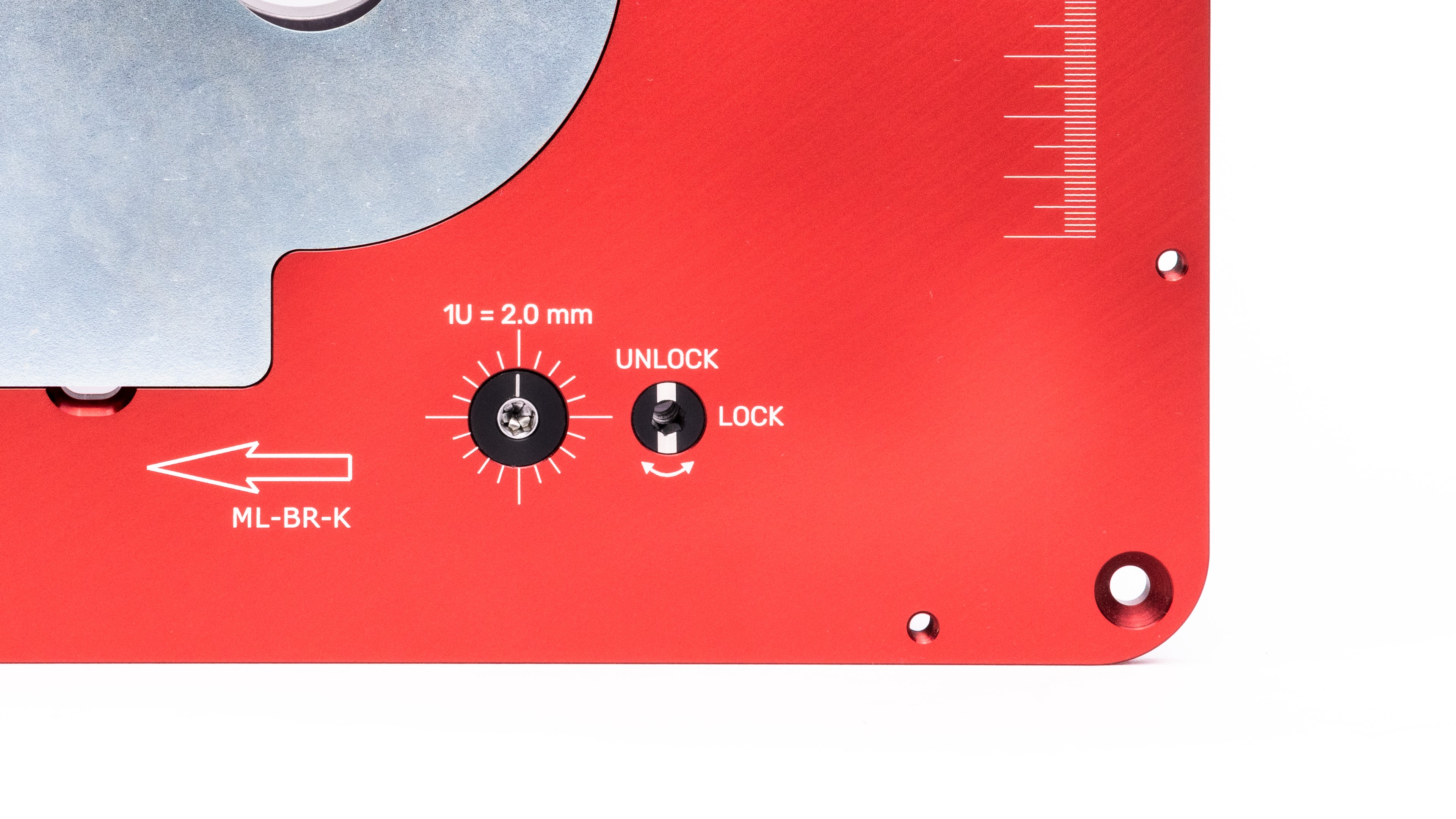

- Easy height adjustment and spindle lock from above
- Routing can be controlled via safety switch
- Easy cutter changes from above thanks to exposed and very easily accessible cutter spindle
- No loss of milling depth
- Fine height adjustment can be set to within 1/10 mm
- High-contrast laser scaling
- Assembly made easy

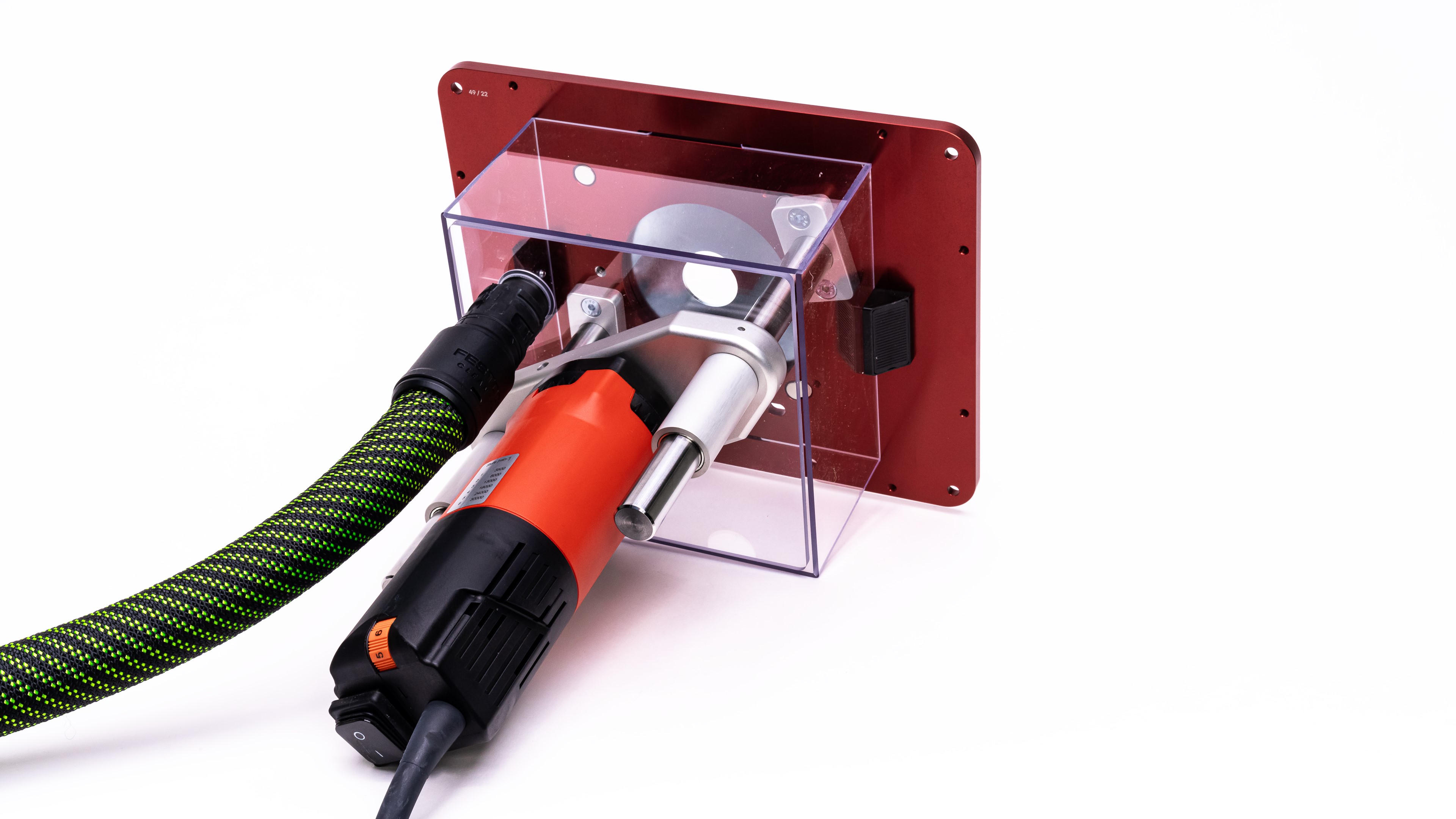

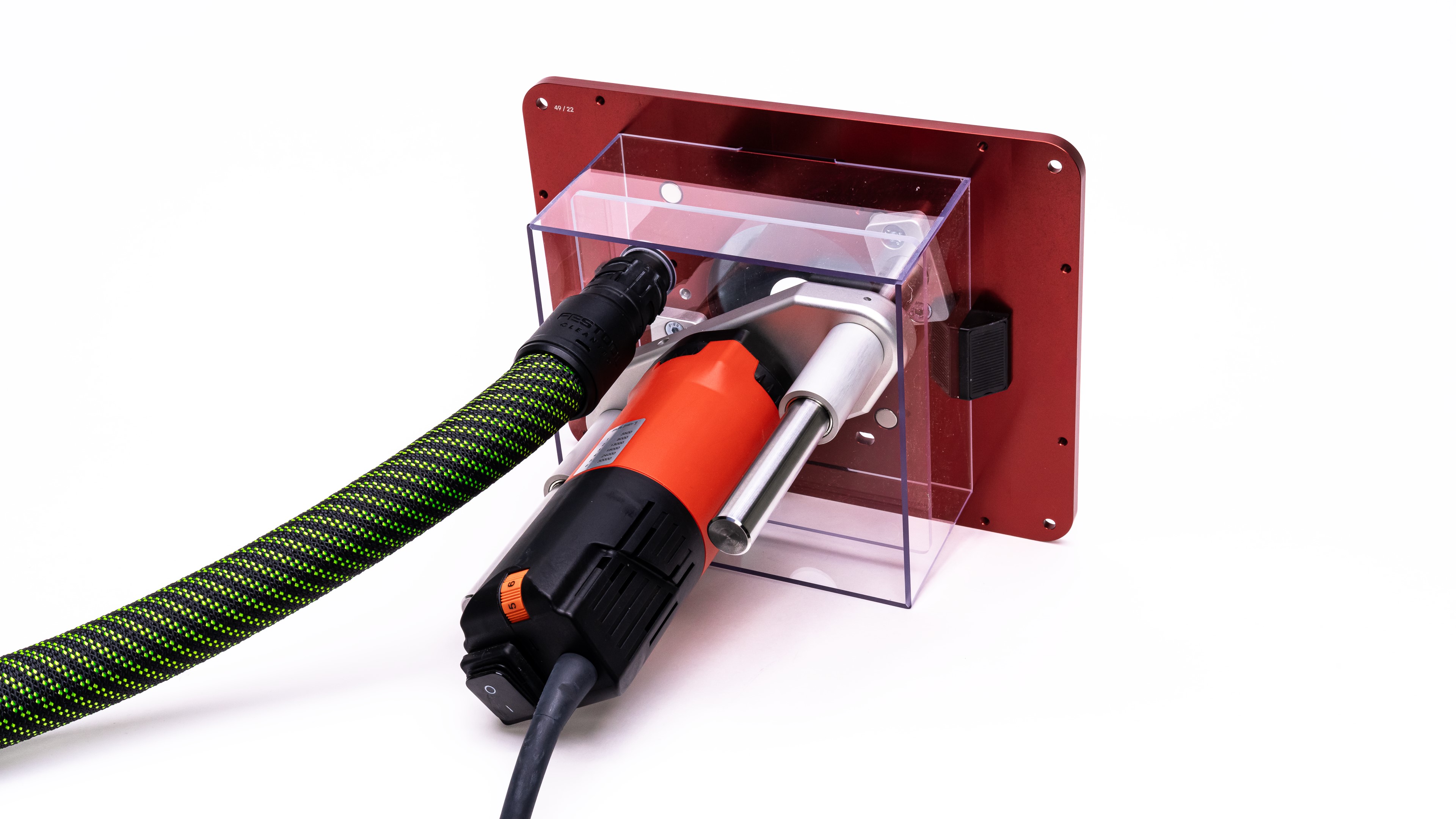

- Integrated extraction connetion
- Quality 100% Made in Deutschland
Technical Data:
- Max. router Ø: 55mm
- Ø cutter opening: 98mm
- Travel: 90mm
- Height adjustment from top with hexagon socket (5mm)
- Adjustment travel per revolution: 2mm
- Spindle lock from above with hexagon socket (5mm)
- Dimensions of insert plate: 298 x 235 x 9 mm
- Corner radius of insert plate: 19,05 mm (3/4")
- Dimensions (LxWxH): 298 x 235 x 213 mm
- Weight: approx. 4,0 kg
Scope of delivery:
- 1x router lift: ML-BR
- 1x reduction plates Ø 32 & 68 mm
- 1x set of fastening screws for installation in the router table
- 1x instruction manual
