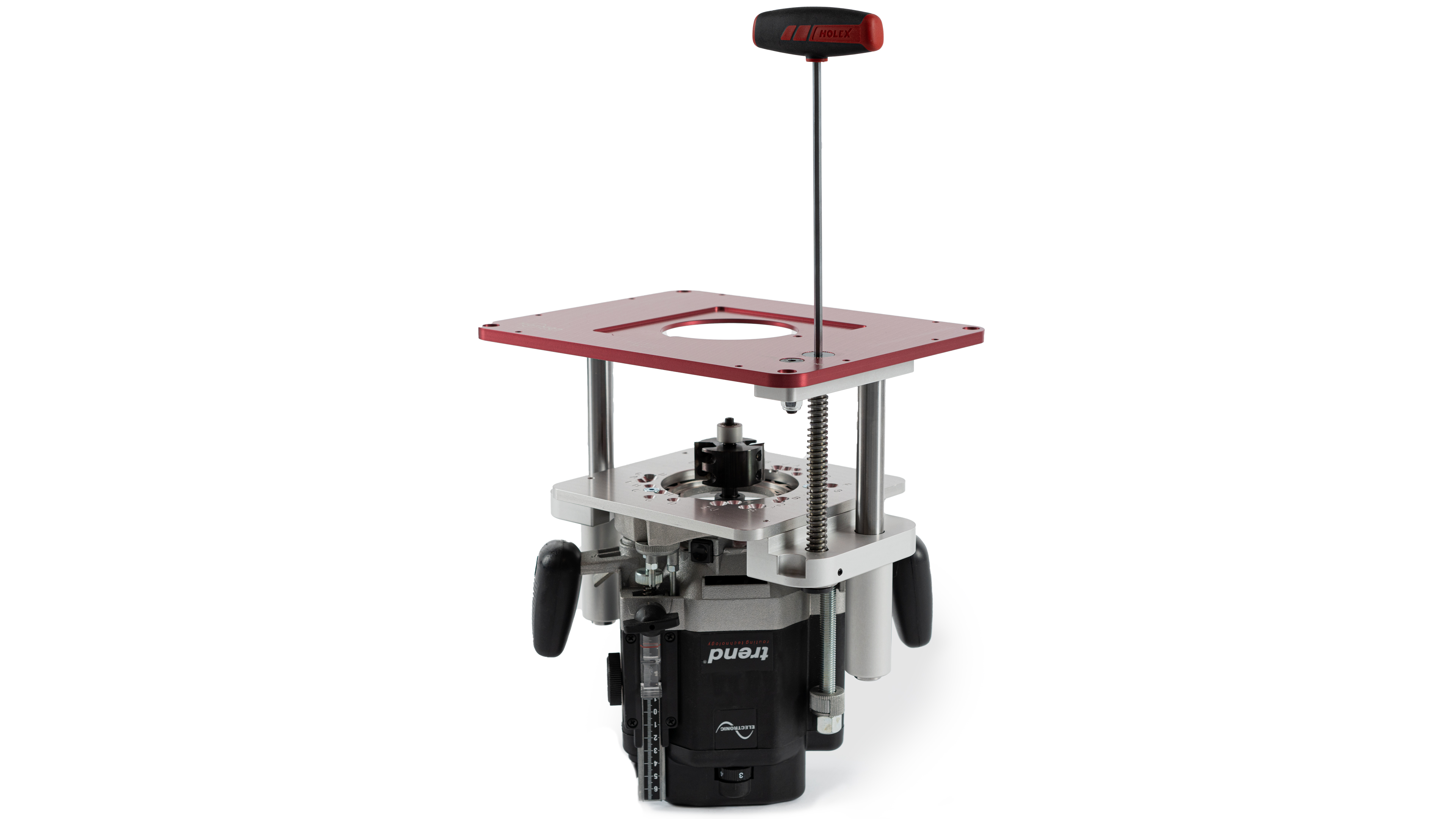

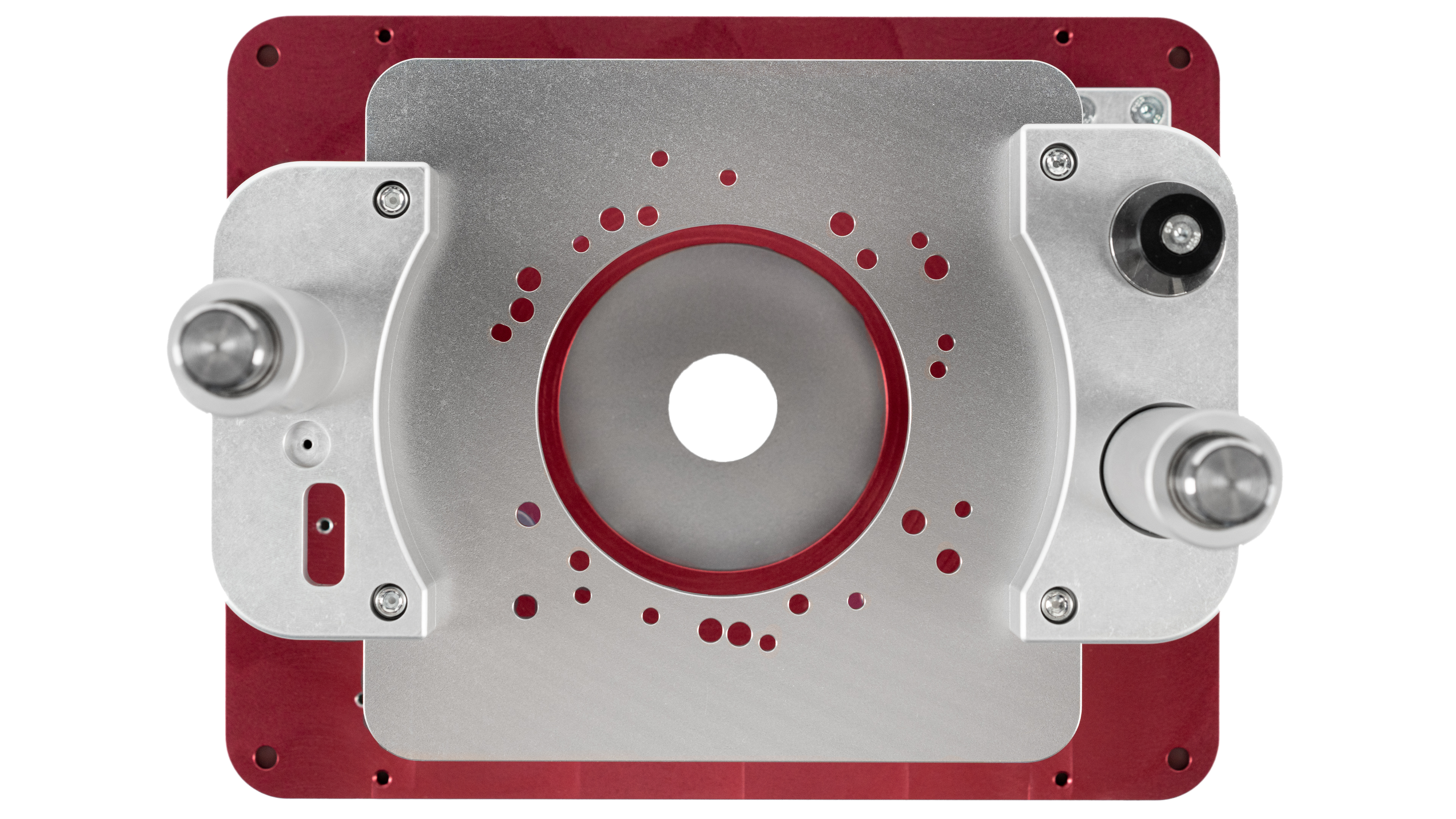

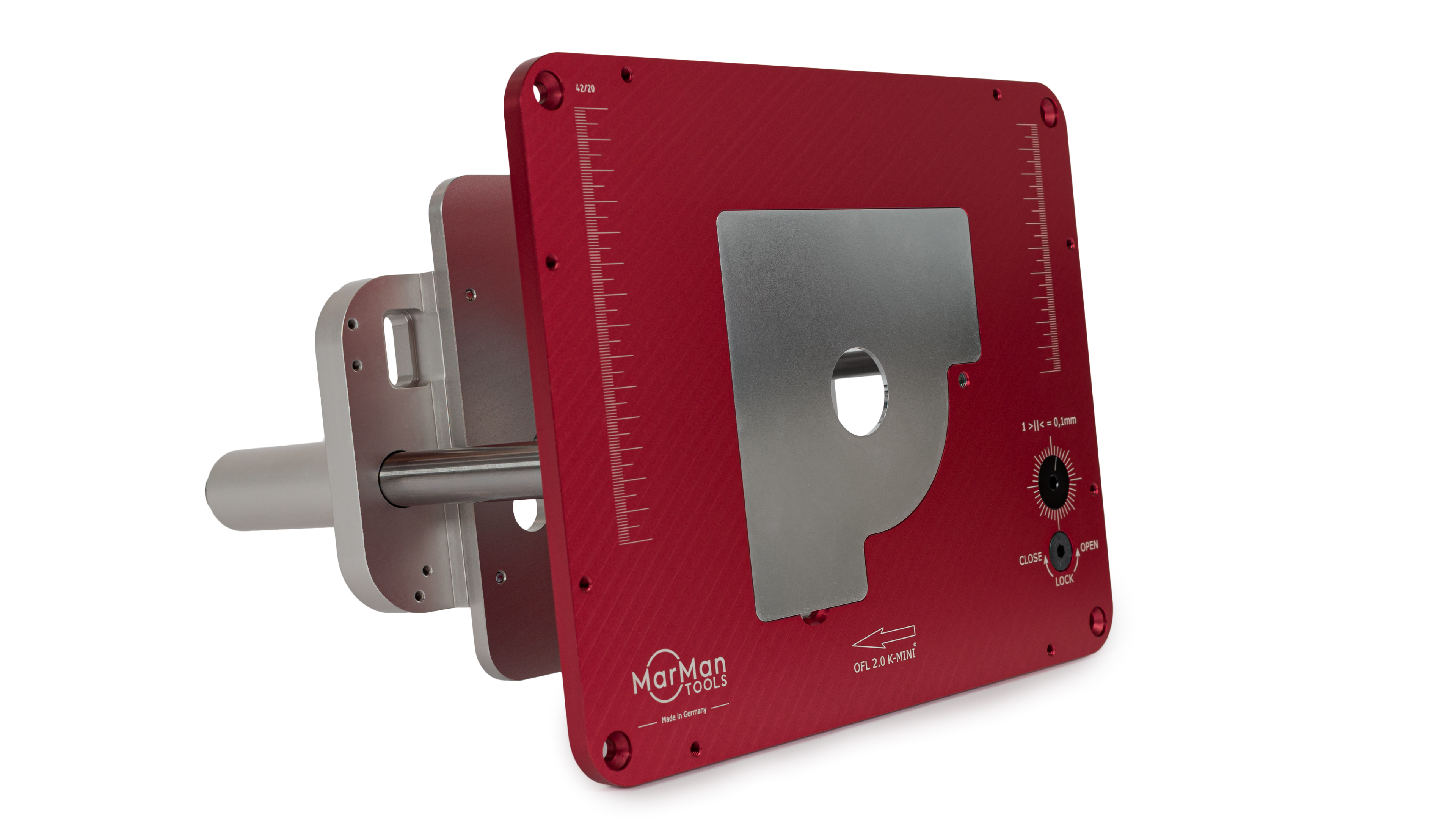

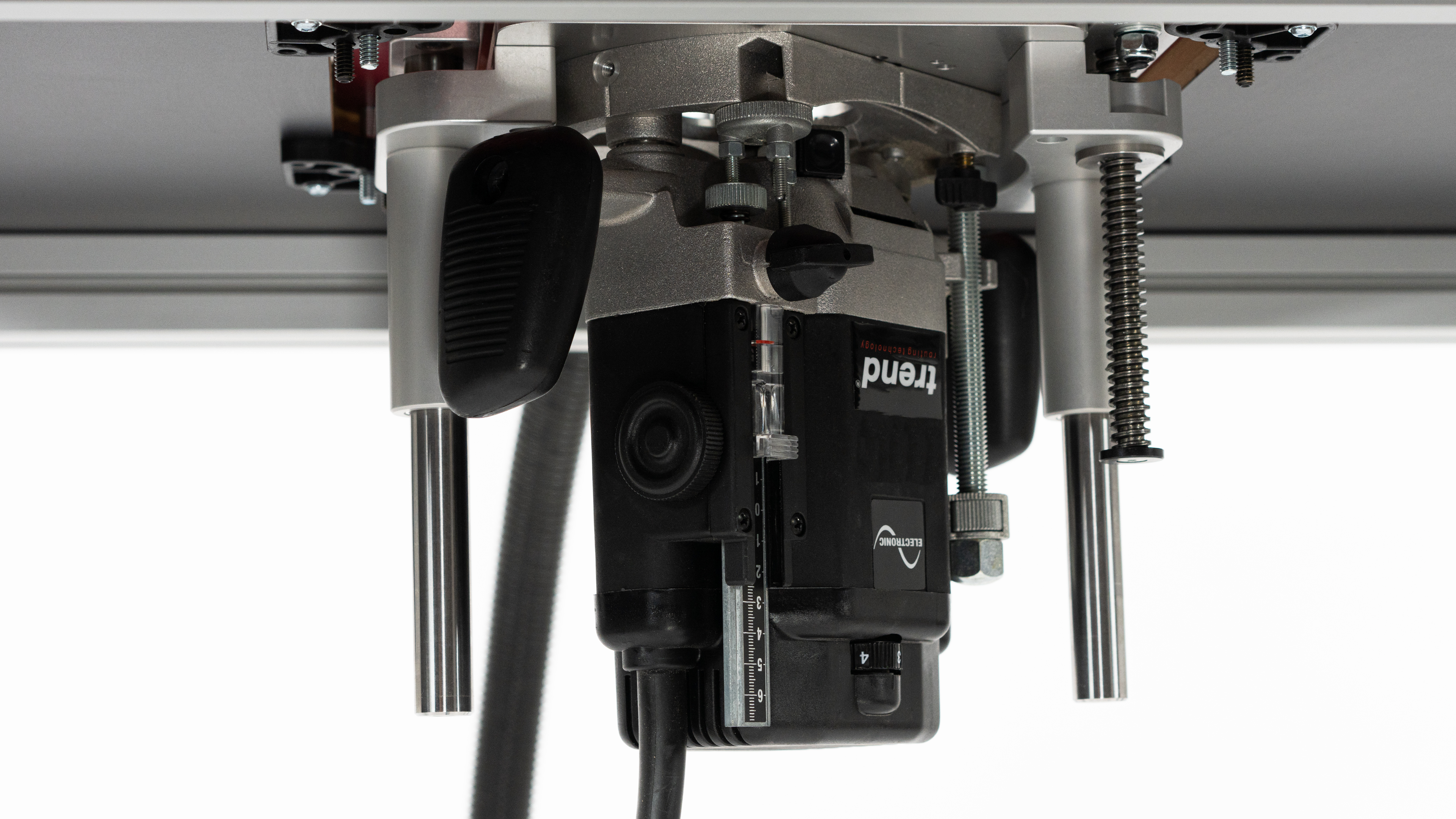

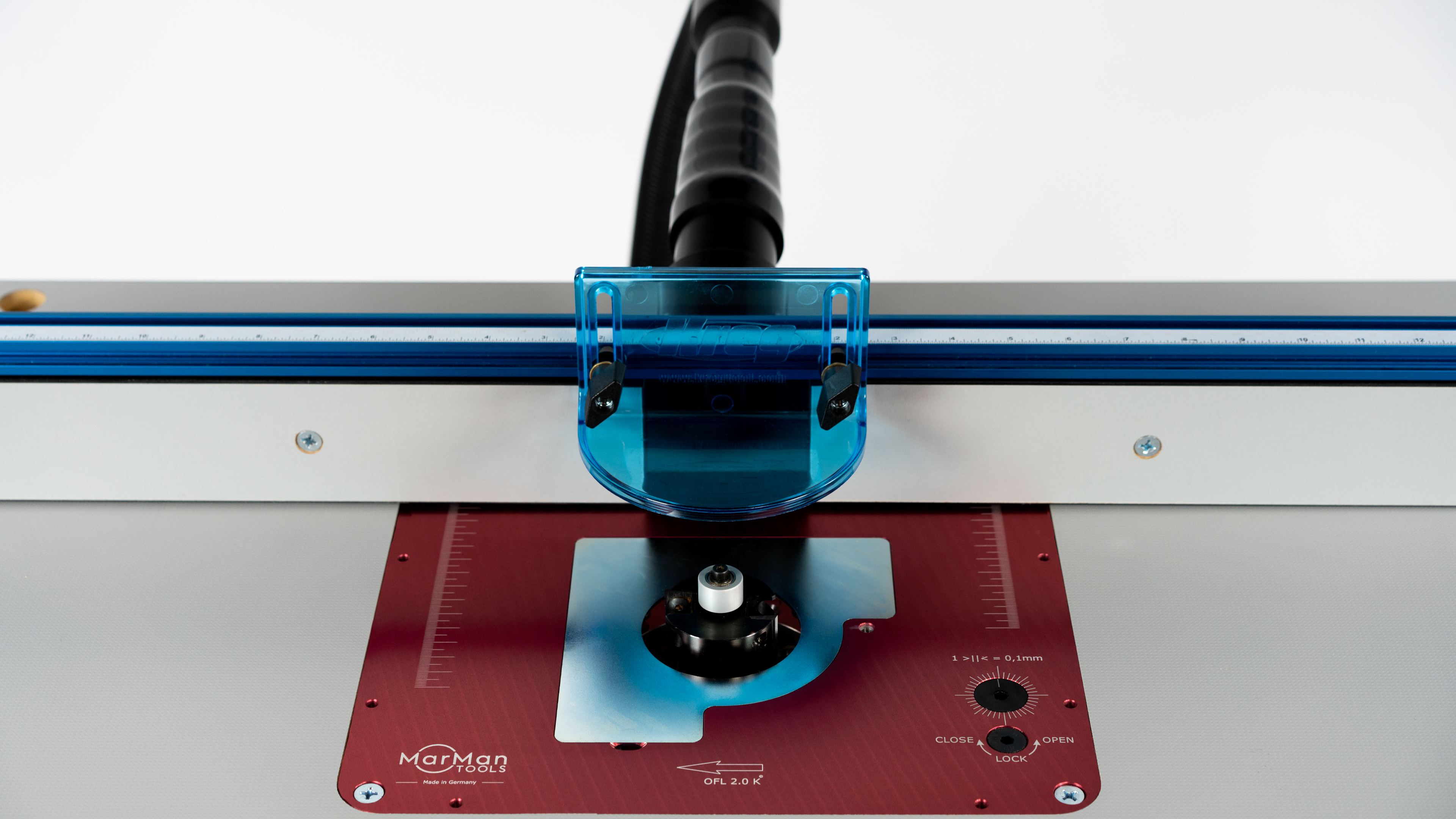

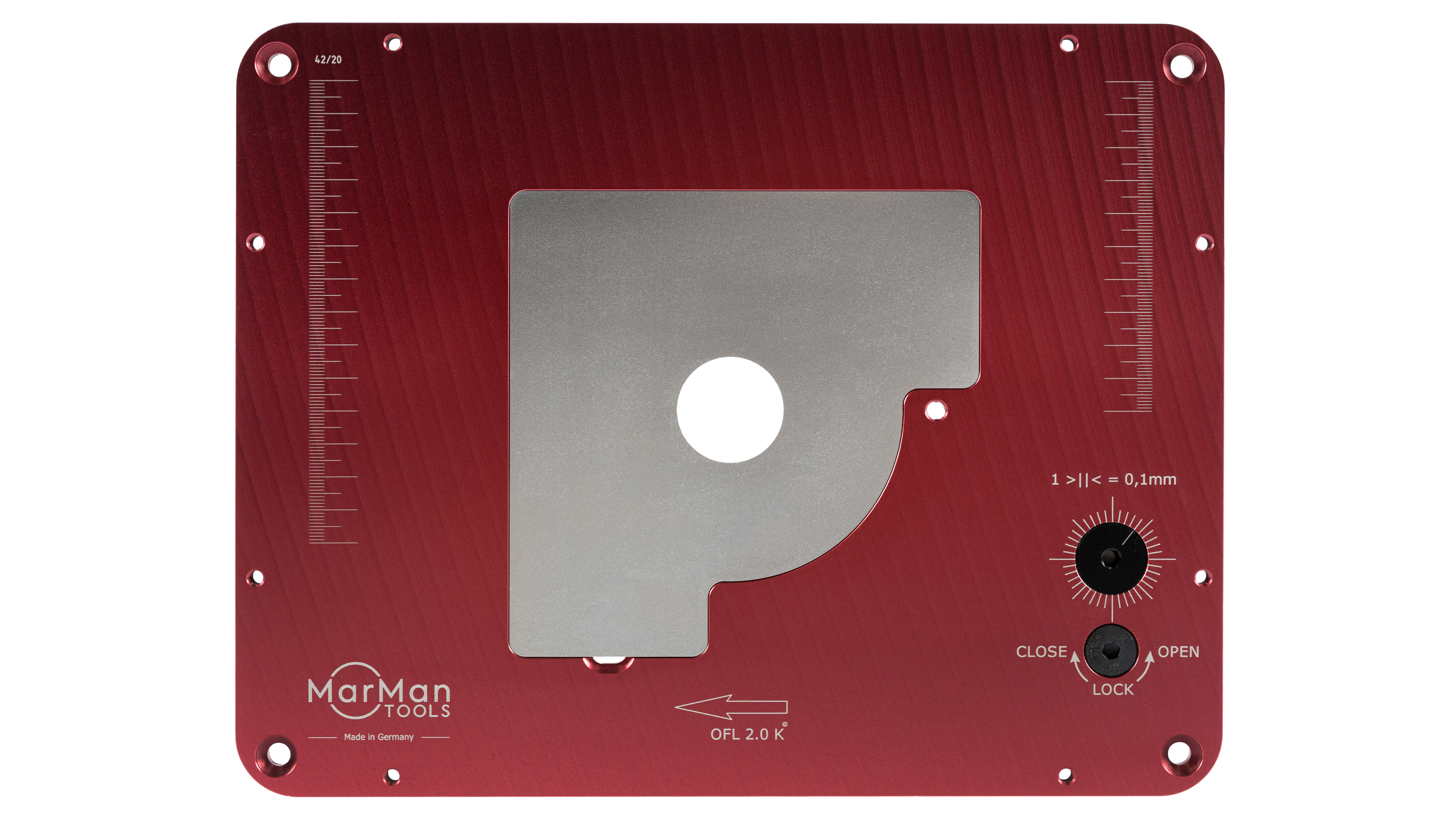

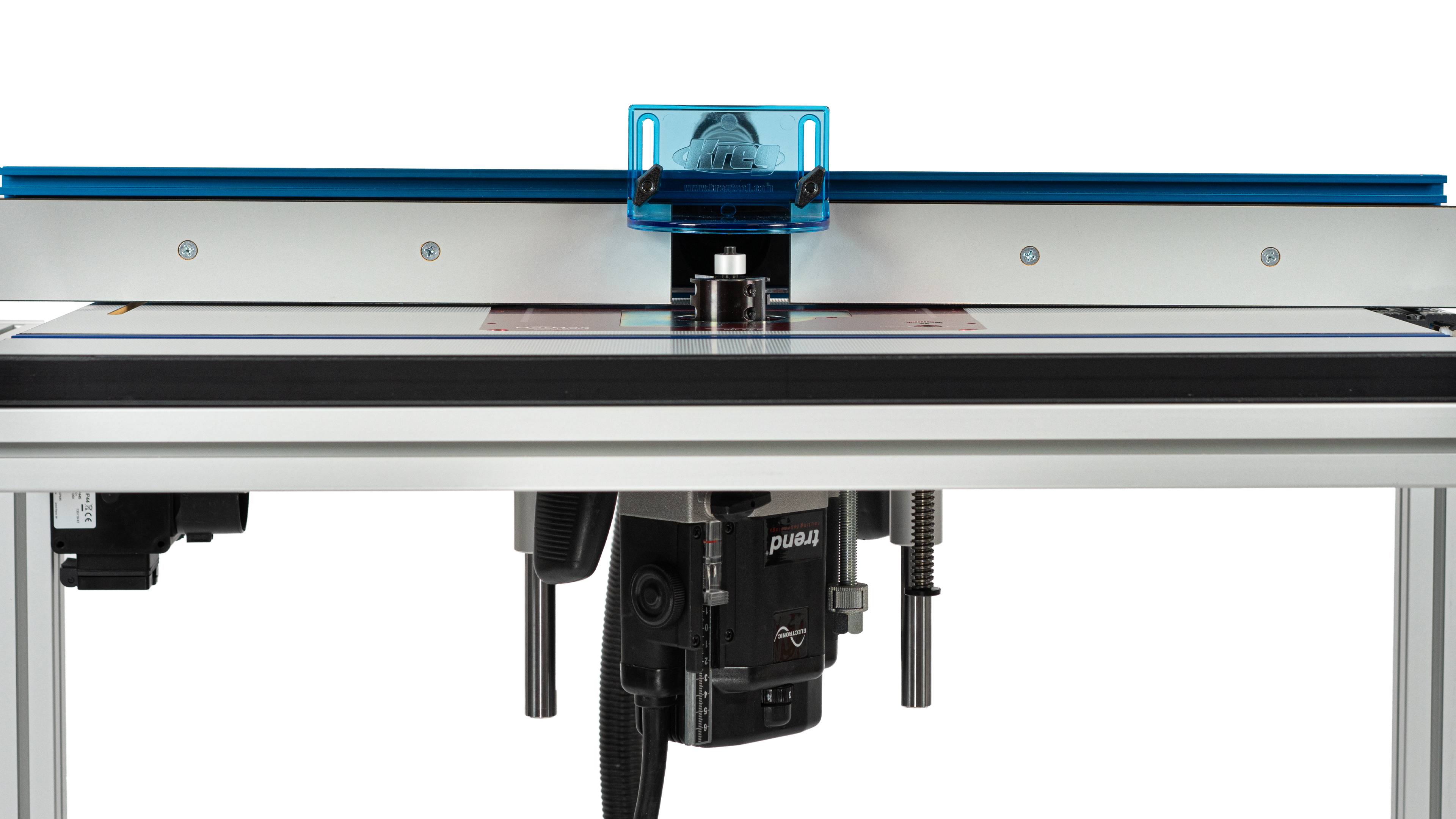

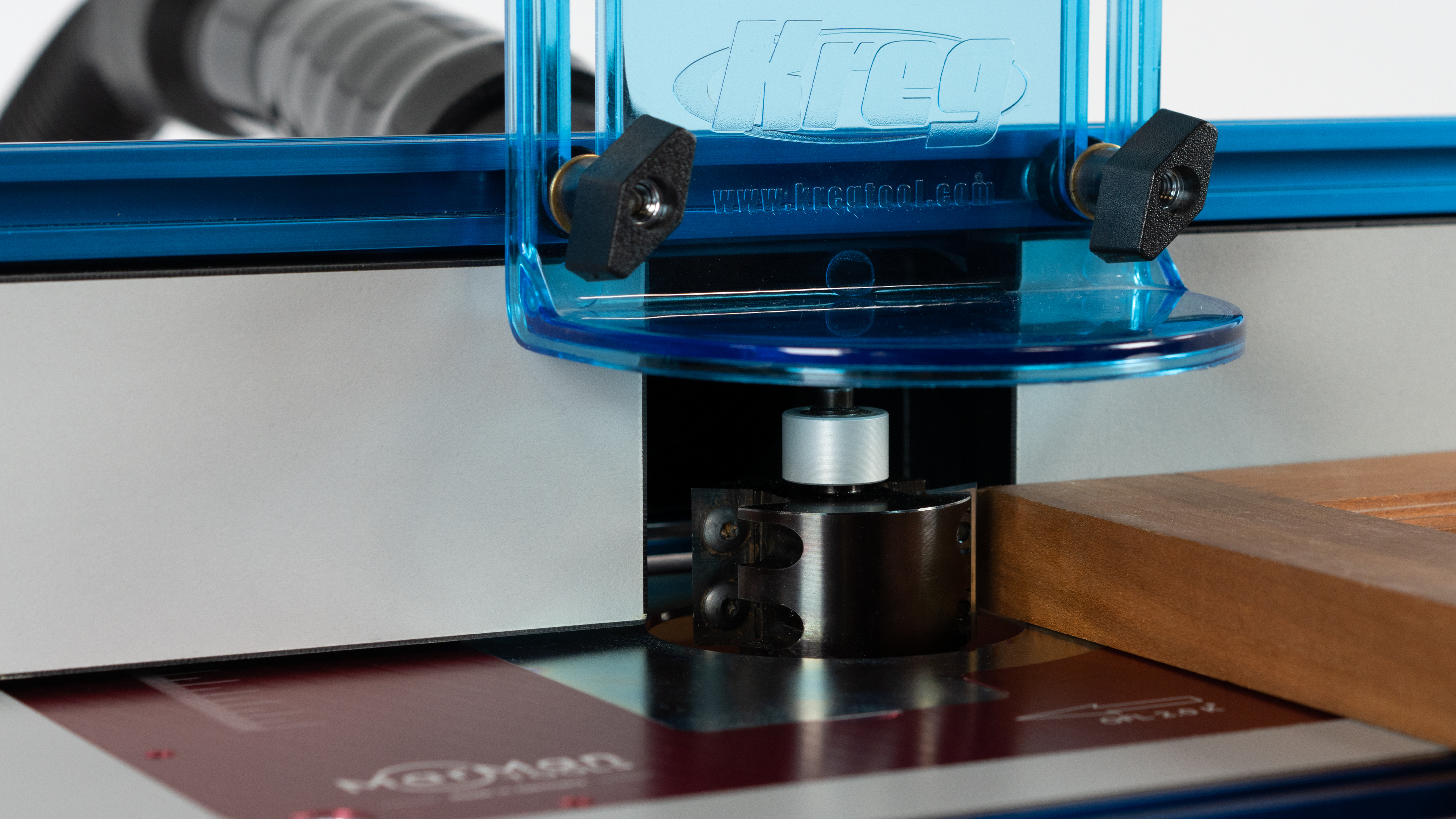

Router Lift RL2.0K -MINI (KREG-format) for small router
Prices are hidden for your customer group
Product information "Router Lift RL2.0K -MINI (KREG-format) for small router"
Router lift (Kreg-format) with steel reduction plates 32 & 68 mm
Product details:
- Quality made in Germany: construction made of high-quality aluminium and steel.
- Height fine adjustment to 1/10mm: extremely precise adjustment, with exact scaling and effective spindle lock, easily operated via hexagon socket screw.
- Smooth-running spindle columns: allow for continuous and exact fine height adjustment.
- Routing without rip fence: 2 drill holes for the rip fence pin enable free routing of e.g. round workpieces without rip fence.
- Easy mounting: mounting of the router to the RL2.0-MINI through pre-drilled mounting holes (hole pattern in operating instructions).
- Absolutely flat: easy levelling of the RL2.0-MINI by means of levelling screws in the insert plate.
- Laser scaling: millimeter scale on the surface for exact alignment of the rip fence.
- No need to drill your own holes: mounting holes (countersunk head) for quick router table installation are already pre-drilled.
Special features of the Mini-version:
- Compatible with the smallest routers.
- The reduction plates offer more choice and control in choosing the right hole size. Perfectly adapted to the size of the router - especially for small workpieces, "jamming and sticking" at the hole edge is eliminated.
- Magnets for fastening further accessories are distributed over the entire reduction plate.
- Additional recessed grip for easy changing of the reduction plates.
Compatible routers:
- DeWalt: D26203, D26204
- Festool: OF1010, OF1000, OF900E
- Makita: RT0700, RP0900
- Metabo: OFE1229
Technical data:
- Dimension insert plate: 298 x 235 x 9 mm
- Corner radius of insert plate: 19,05 mm (3/4")
- Distance from the top edge of the inlay plate to the base plate of the mounted router: 15 mm (loss of routing depth)
- Height adjustment travel/rotation: 4 mm
- Height router lift (max. extended): 240mm
- Max. cutter diameter: 86 mm
- Max. adjustment travel: 105 mm
- Weight: 4,5 kg
Delivery Includes:
- 1x router lift RL2.0K-MINI
- 2x reduction plates Ø 32 and 68 mm
- 1x hexagon screwdriver 5x150 mm
- 4x fixing screws M6x50, washers and nuts
- 18x mounting screws (various sizes)
- 8x levelling screws M5x8
- 1x instruction manual (german & english)
